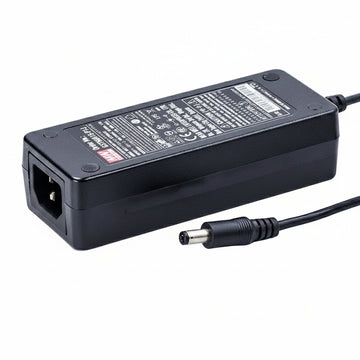

GST60A12-P1J MEAN WELL Power Supply | HTD Electronics
MEAN WELL

GST60A12-P1J

Manufacturer Model Name
Availability: Out of stock
More Stock Arriving Soon 360 total units
360 units
Arrival: Jul 29, 2026

Request a Backorder

Submit your request and we will confirm lead time.

GST60A12-P1J SKU: 9461684
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$29.00 CAD
10+
$27.55 CAD
20+
$26.97 CAD
50+
$26.39 CAD
100+
$25.81 CAD
200+
$25.23 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
12V
Rated Current
5A
Power Rating
60W
Waterproof
Non-waterproof
Dimensions
4.92 x 1.96 x 1.24 in
Weight
0.67 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
No load power consumption < 0.075W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Overload / Over voltage/Over temperature
Fully enclosed plastic case
LED indicator for power on
Pass LPS
3 years warranty


General Specification

AC input voltage range 90~264VAC 135~370VDC
AC inrush current (max.) Cold start, 65A at 230VAC
Overload protection 105%~150% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve )
Safety standards UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, AS/NZS 60950.1approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH) 125x 50x 31.5mm
Standard DC plug P1J: 2.1ID x 5.5OD x 11L, tuning fork type

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
