MSP-100-12 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

MSP-100-12

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

MSP-100-12
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$70.10 CAD
10+
$66.60 CAD
20+
$65.19 CAD
50+
$63.79 CAD
100+
$62.39 CAD
200+
$60.99 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V-264V
Output Voltage
12V
Rated Current
8.5A
Power Rating
100W
Waterproof
Non-waterproof
Dimensions & Weight
6.26 x 3.82 x 1.5 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

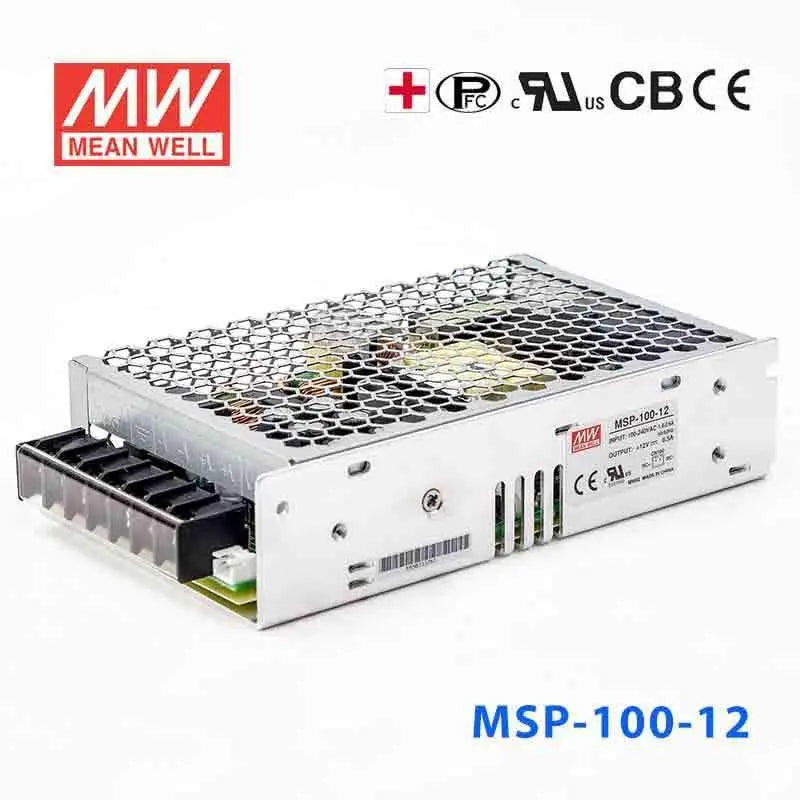

The MEAN WELL MSP-100-12 is a medical power supply from the 100W MSP-100 series, delivering 12V at up to 8.5A (102W rated). It is designed for medical and healthcare equipment, diagnostic devices and other applications requiring medical-grade isolation.

Key features

  • Output: 12V, 8.5A rated, 102W
  • Input: 85–264VAC / 120–370VDC
  • Protections: short circuit, overload, over voltage, over temperature
  • Typical efficiency 87.5%
  • 5-year manufacturer warranty

Specifications

Model MSP-100-12
Series MSP-100
Output 12V / 8.5A, 102W
Input 85–264VAC / 120–370VDC
Efficiency (typ.) 87.5%
Working temperature -40 to +60°C (-40 to 140°F)
Dimensions 159 × 97 × 38 mm (6.26 × 3.82 × 1.50 in)
Weight 0.55 kg

Typical applications: medical and healthcare equipment, diagnostic devices and other applications requiring medical-grade isolation.

Datasheet: MSP-100 series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
