GSM06E07-P1J MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

GSM06E07-P1J

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

GSM06E07-P1J
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$20.32 CAD
10+
$19.30 CAD
20+
$18.90 CAD
50+
$18.49 CAD
100+
$18.08 CAD
200+
$17.68 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V-264V
Output Voltage
7.5V
Rated Current
0.8A
Power Rating
6W
Waterproof
Non-waterproof
Dimensions & Weight
1.67 x 1.44 x 0.87 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

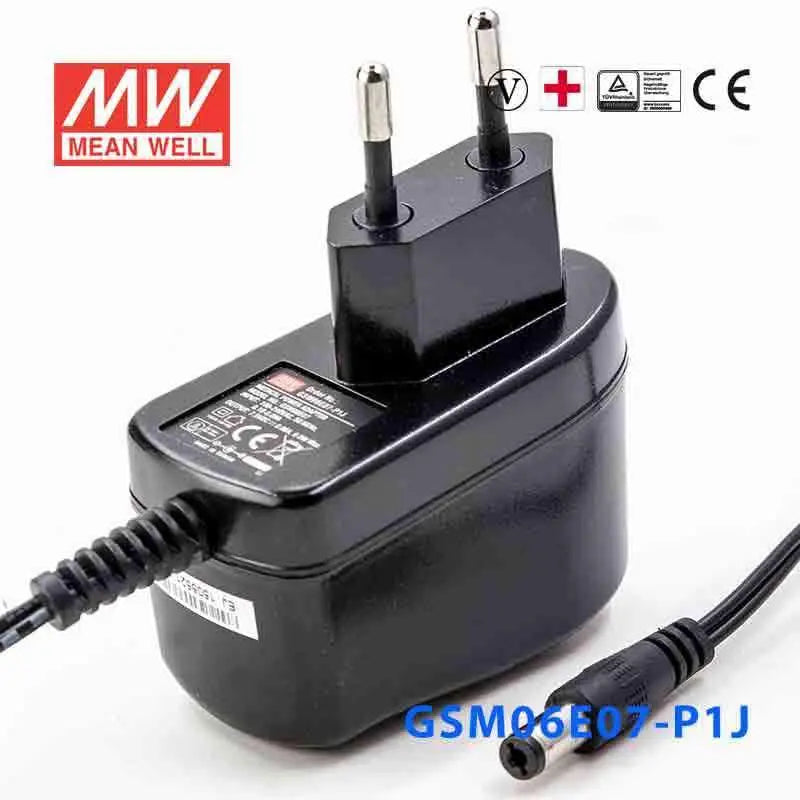

The MEAN WELL GSM06E07-P1J is a medical-grade AC/DC adapter delivering 7.5V at up to 0.8A (6W rated). It is designed for medical and home-healthcare devices, patient-monitoring equipment and portable medical instruments.

Key features

  • Output: 7.5V, 0.8A rated
  • Input: 85–264VAC / 120–370VDC
  • 2 × MOPP isolation (primary to secondary)
  • Protections: overload, over voltage
  • Typical efficiency 74%

Specifications

Model GSM06E07-P1J
Series GSM06E
Output 7.5V / 0.8A
Rated power 6W
Input 85–264VAC / 120–370VDC
Efficiency (typ.) 74%
Working temperature 0 to +50°C (32 to 122°F)
Dimensions 32 × 66 × 42.5 mm (1.26 × 2.60 × 1.67 in)

Typical applications: medical and home-healthcare devices, patient-monitoring equipment and portable medical instruments.

Datasheet: GSM06E series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
