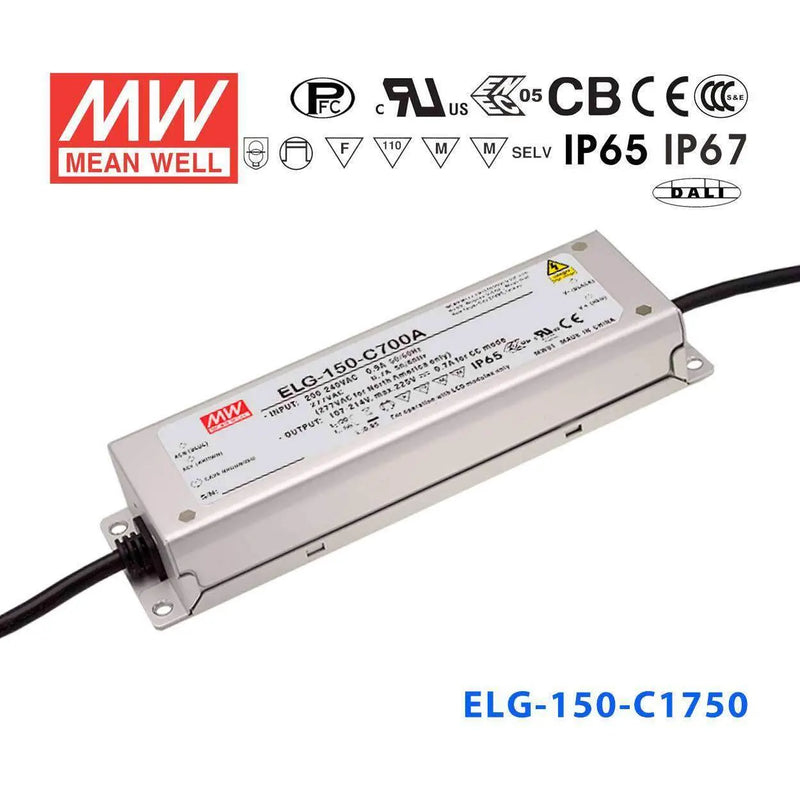

ELG-150-C1750 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

ELG-150-C1750

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

ELG-150-C1750
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$68.39 CAD
10+
$64.97 CAD
20+
$63.60 CAD
50+
$62.23 CAD
100+
$60.87 CAD
200+
$59.50 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V-305V
Output Voltage
43-86V
Rated Current
1.75A
Power Rating
150W
Waterproof
IP67
Dimensions & Weight
8.62 x 2.48 x 1.4 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

The MEAN WELL ELG-150-C1750 is a constant current LED driver with a rated output current of 1750mA over a 43–86V constant current region (150.5W rated). It is designed for LED street, area and flood lighting, high-bay fixtures, signage, architectural and other indoor or outdoor LED installations.

Key features

  • Output: 1750mA constant current, 43–86V
  • Rated power: 150.5W at 200–305VAC; 105W at 100–180VAC
  • Input: 100–305VAC / 142–431VDC
  • IP65 / IP67 rated housing
  • Protections: short circuit, over voltage, over temperature
  • Typical efficiency 91%

Specifications

Model ELG-150-C1750
Series ELG-150-C
Output 1750mA constant current, 43–86V
Rated power 150.5W at 200–305VAC; 105W at 100–180VAC
Input 100–305VAC / 142–431VDC
Efficiency (typ.) 91%
Protection rating IP65 / IP67
Working temperature Tcase -40 to +90°C (-40 to 194°F)
Dimensions 219 × 63 × 35.5 mm (8.62 × 2.48 × 1.40 in)
Weight 0.95 kg

Typical applications: LED street, area and flood lighting, high-bay fixtures, signage, architectural and other indoor or outdoor LED installations.

Datasheet: ELG-150-C series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
