DRC-40A MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

RDC-40A

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

RDC-40A SKU: 030-850
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$50.88 CAD
10+
$48.34 CAD
20+
$47.32 CAD
50+
$46.30 CAD
100+
$45.28 CAD
200+
$44.27 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V-264V
Output Voltage
13.8 / 13.8V
Rated Current
2.9 / 1A
Power Rating
40W
Waterproof
Non-waterproof
Dimensions & Weight
1.57 x 3.54 x 3.94 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

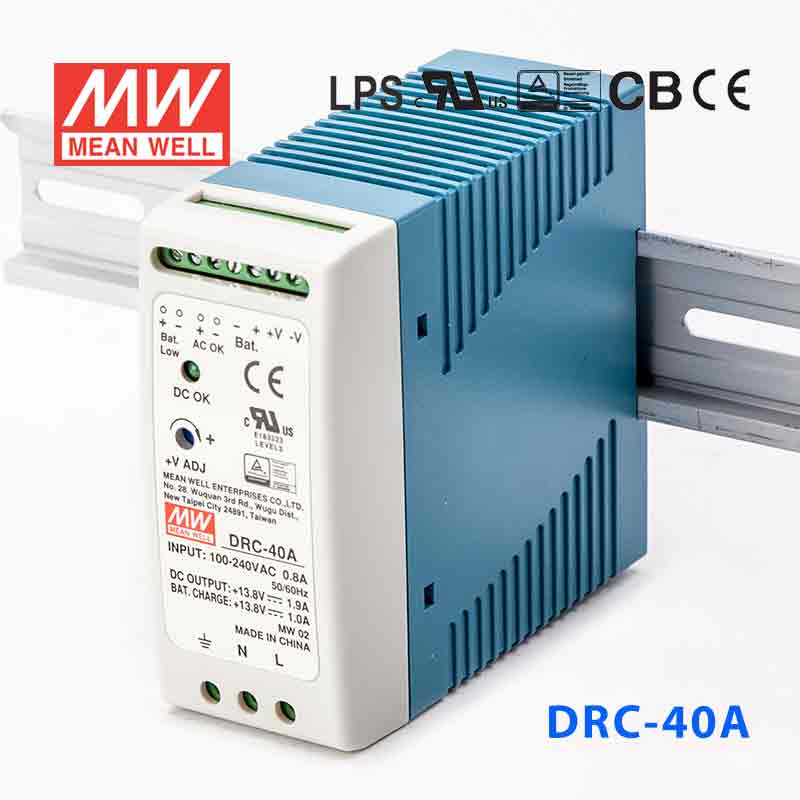

The MEAN WELL DRC-40A is a 40W DIN rail power supply with a battery charger and UPS function. CH1 supplies the load at 13.8V (up to 1.9A) while CH2 charges an external 12V battery at 13.8V / 1A. When AC mains is present the unit powers the load and charges the battery at the same time; if AC fails, the battery supplies the load, with a battery cutoff at 10V ±0.5V to prevent deep discharge.

Key features

  • CH1 load output 13.8V, 1.9A rated (0–2.9A); CH2 battery charger 13.8V, 1A
  • UPS function: battery takes over the load on AC failure
  • Battery cutoff 10V ±0.5V
  • AC OK and battery low alarm signals
  • DIN rail mounting
  • Input: 90–264VAC / 127–370VDC
  • Protections: overload, over voltage
  • Typical efficiency 86%

Specifications

Output Voltage Rated current Current range Ripple & noise (max.)
CH1 (load) 13.8V 1.9A 0–2.9A 120mVp-p
CH2 (battery charger) 13.8V 1A — —
Model DRC-40A
Series DRC-40
Total rated power 40.02W
CH1 voltage adjustment 12–15V
Battery cutoff 10V ±0.5V
Input 90–264VAC / 127–370VDC
Efficiency (typ.) 86%
Working temperature -30 to +70°C (-22 to 158°F) ambient, derating per datasheet curve
Dimensions 40 × 90 × 100 mm (1.57 × 3.54 × 3.94 in) (W × H × D)
Weight 0.3 kg

Typical applications: security and surveillance systems, access control, alarm panels and other DIN rail equipment that must keep running during AC outages.

Datasheet: DRC-40 series specification (PDF). Ships from Miami, FL.

SKU: 030-850

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
