DRC-40B MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

RDC-40B

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

RDC-40B
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$50.88 CAD
10+
$48.34 CAD
20+
$47.32 CAD
50+
$46.30 CAD
100+
$45.28 CAD
200+
$44.27 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V-264V
Output Voltage
27.6 / 27.6V
Rated Current
1.45 / 0.5A
Power Rating
40W
Waterproof
Non-waterproof
Dimensions & Weight
1.57 x 3.54 x 3.94 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

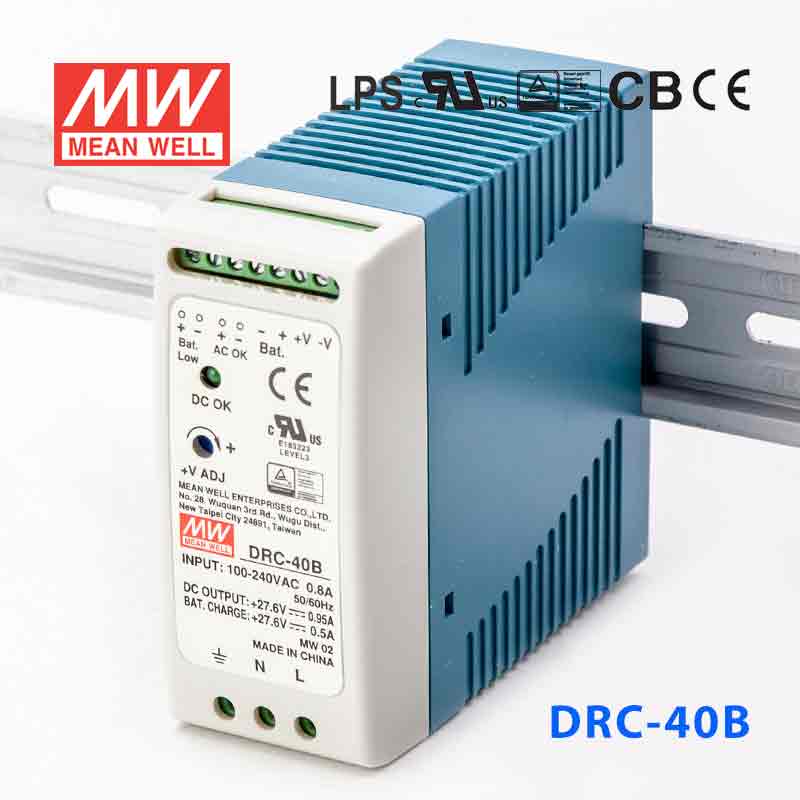

The MEAN WELL DRC-40B is a 40W DIN rail power supply with a battery charger and UPS function. CH1 supplies the load at 27.6V (up to 0.95A) while CH2 charges an external 24V battery at 27.6V / 0.5A. When AC mains is present the unit powers the load and charges the battery at the same time; if AC fails, the battery supplies the load, with a battery cutoff at 20V ±1V to prevent deep discharge.

Key features

  • CH1 load output 27.6V, 0.95A rated (0–1.45A); CH2 battery charger 27.6V, 0.5A
  • UPS function: battery takes over the load on AC failure
  • Battery cutoff 20V ±1V
  • AC OK and battery low alarm signals
  • DIN rail mounting
  • Input: 90–264VAC / 127–370VDC
  • Protections: overload, over voltage
  • Typical efficiency 87%

Specifications

Output Voltage Rated current Current range Ripple & noise (max.)
CH1 (load) 27.6V 0.95A 0–1.45A 200mVp-p
CH2 (battery charger) 27.6V 0.5A — —
Model DRC-40B
Series DRC-40
Total rated power 40.02W
CH1 voltage adjustment 24–30V
Battery cutoff 20V ±1V
Input 90–264VAC / 127–370VDC
Efficiency (typ.) 87%
Working temperature -30 to +70°C (-22 to 158°F) ambient, derating per datasheet curve
Dimensions 40 × 90 × 100 mm (1.57 × 3.54 × 3.94 in) (W × H × D)
Weight 0.3 kg

Typical applications: security and surveillance systems, access control, alarm panels and other DIN rail equipment that must keep running during AC outages.

Datasheet: DRC-40 series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
