TDR-240-24
Manufacturer MEAN WELL

TDR-240-24

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

TDR-240-24 SKU: 025-216
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$119.49 CAD
10+
$113.52 CAD
20+
$111.13 CAD
50+
$108.74 CAD
100+
$106.35 CAD
200+
$103.96 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
340V-550V 3-Phase
Output Voltage
24V
Rated Current
10A
Power Rating
240W
Waterproof
Non-waterproof
Dimensions & Weight
2.48 x 4.93 x 4.47 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

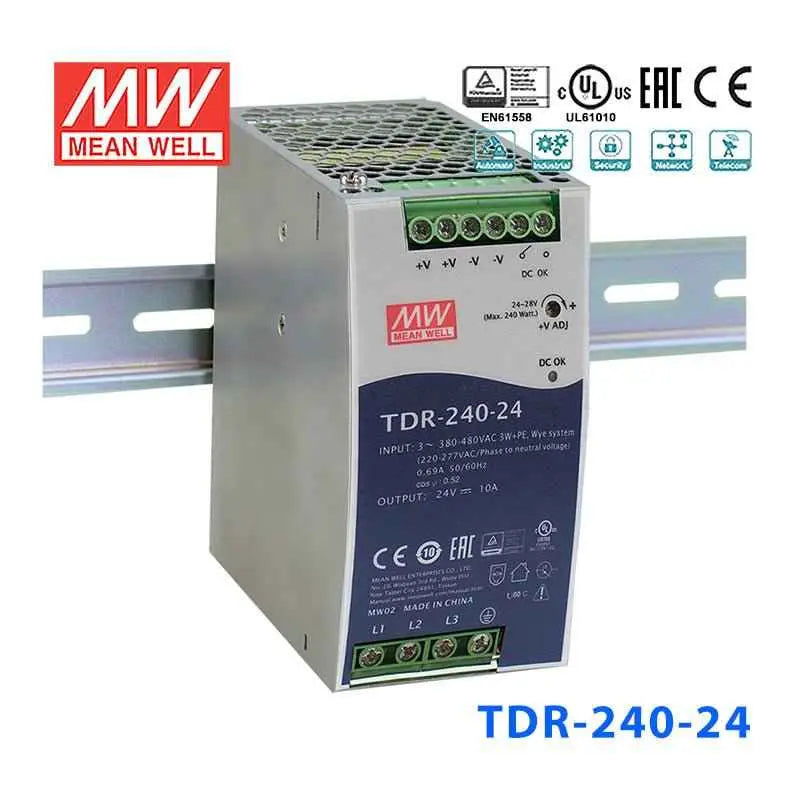

The MEAN WELL TDR-240-24 is a three-phase DIN rail power supply delivering 24V at up to 10A (240W rated). It is designed for industrial automation, process control and machinery supplied from three-phase mains.

Key features

  • Output: 24V, 10A rated
  • Input: Three-Phase 340–550VAC (dual-phase operation possible) or 480–780VDC
  • Protections: short circuit, overload, over voltage, over temperature
  • Typical efficiency 92%
  • 3-year manufacturer warranty

Specifications

Model TDR-240-24
Series TDR-240
Output 24V / 10A
Rated power 240W
Input Three-Phase 340–550VAC (dual-phase operation possible) or 480–780VDC
Efficiency (typ.) 92%
Working temperature -30 to +70°C (-22 to 158°F)
Dimensions 63 × 125.2 × 113.5 mm (2.48 × 4.93 × 4.47 in)
Weight 1 kg

Typical applications: industrial automation, process control and machinery supplied from three-phase mains.

Datasheet: TDR-240 series specification (PDF). Ships from Miami, FL.

SKU: 025-216

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
