RS-15-5
Manufacturer MEAN WELL

RS-15-5

Availability: 324 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

RS-15-5 SKU: 71342
Quantity
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$12.57 CAD
10+
$11.94 CAD
20+
$11.69 CAD
50+
$11.44 CAD
100+
$11.19 CAD
200+
$10.94 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V-264V
Output Voltage
5V
Rated Current
3A
Power Rating
15W
Waterproof
Non-waterproof
Dimensions & Weight
2.46 x 2.01 x 1.1 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

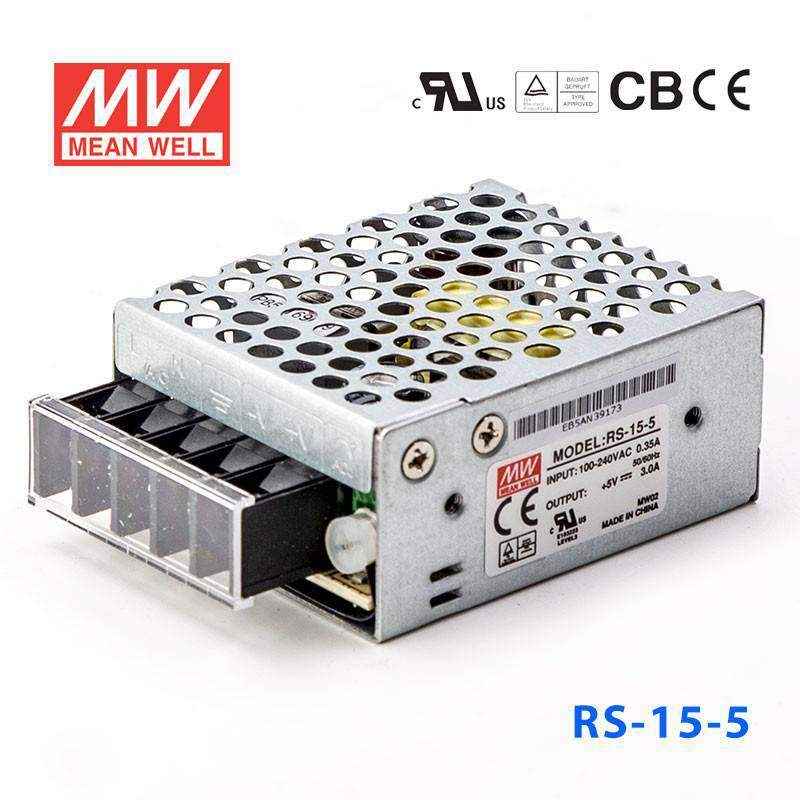

The MEAN WELL RS-15-5 is a 15W enclosed AC/DC power supply, delivering 5V at up to 3A. It is designed for industrial control and automation, factory equipment, test and measurement, telecom and general-purpose DC systems.

Key features

  • Output: 5V, 3A rated, 15W
  • Input: 85–264VAC / 120–370VDC
  • Protections: short circuit, overload, over voltage, over temperature
  • Typical efficiency 77%
  • 3-year manufacturer warranty

Specifications

Model RS-15-5
Series RS-15
Output 5V / 3A, 15W
Input 85–264VAC / 120–370VDC
Efficiency (typ.) 77%
Working temperature -20 to +70°C (-4 to 158°F)
Dimensions 62.5 × 51 × 28 mm (2.46 × 2.01 × 1.10 in)
Weight 0.13 kg

Typical applications: industrial control and automation, factory equipment, test and measurement, telecom and general-purpose DC systems.

Datasheet: RS-15 series specification (PDF). Ships from Miami, FL.

SKU: 71342

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
