DDR-15L-3.3
Manufacturer MEAN WELL

DDR-15L-3.3

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

DDR-15L-3.3
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$26.82 CAD
10+
$25.48 CAD
20+
$24.94 CAD
50+
$24.41 CAD
100+
$23.87 CAD
200+
$23.33 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
18V-75V DC
Output Voltage
3.3V
Rated Current
4.5A
Power Rating
15W
Waterproof
Non-waterproof
Dimensions & Weight
0.69 x 3.54 x 2.15 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

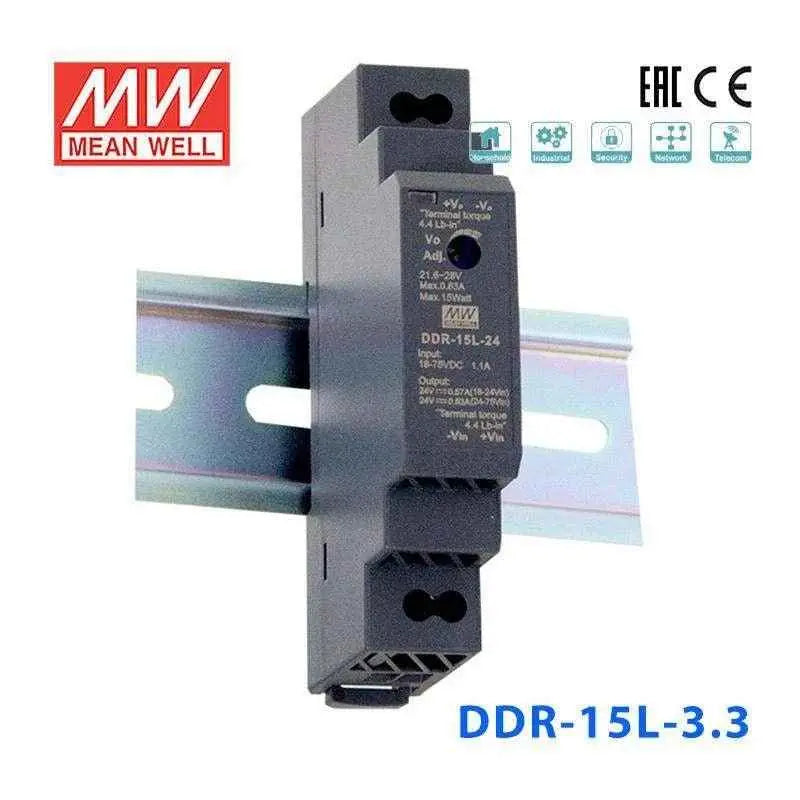

The MEAN WELL DDR-15L-3.3 is a DIN rail DC-DC converter delivering 3.3V at up to 4.5A (15W rated). It is designed for industrial control, transportation, battery-powered and solar systems and other DC-bus applications.

Key features

  • Output: 3.3V, 4.5A rated
  • Input: 18–75VDC
  • Protections: overload, over voltage
  • Typical efficiency 84%

Specifications

Model DDR-15L-3.3
Series DDR-15L
Output 3.3V / 4.5A
Rated power 15W
Input 18–75VDC
Efficiency (typ.) 84%
Working temperature -40 to +85°C (-40 to 185°F)
Dimensions 17.5 × 90 × 54.5 mm (0.69 × 3.54 × 2.15 in)

Typical applications: industrial control, transportation, battery-powered and solar systems and other DC-bus applications.

Datasheet: DDR-15L series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
