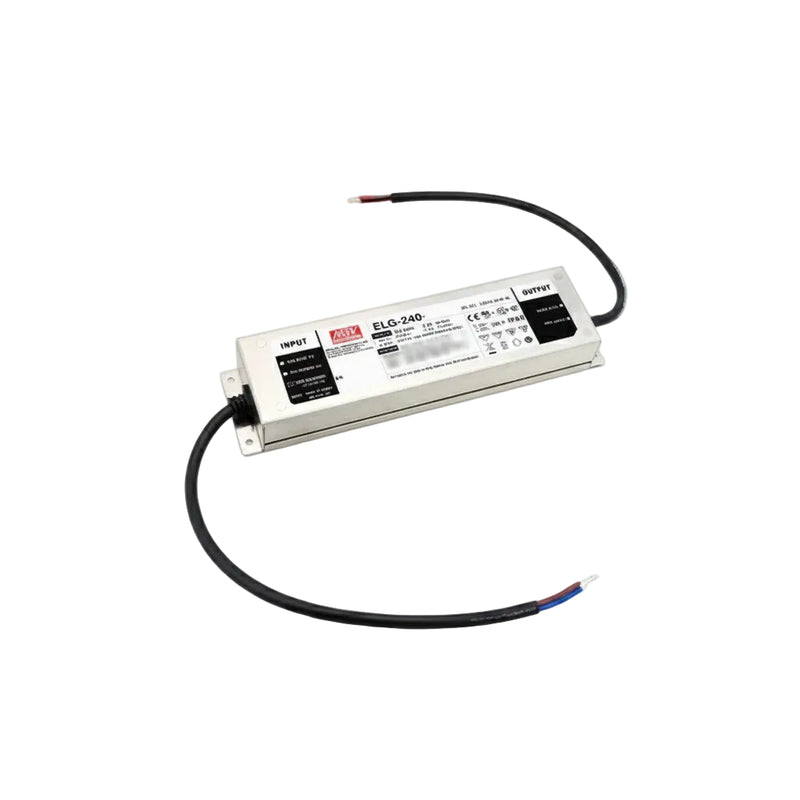

ELG-240-24DA-3Y
Manufacturer MEAN WELL

ELG-240-24DA

Availability: 1 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

ELG-240-24DA SKU: 025-045

216 more units available on request (ready in 1ā€“2 business days). Contact customer service

Quantity
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$85.09 CAD
10+
$80.84 CAD
20+
$79.13 CAD
50+
$77.43 CAD
100+
$75.73 CAD
200+
$74.03 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V~305V
Output Voltage
24V
Rated Current
10A
Power Rating
240W
Waterproof
IP67
Dimensions & Weight
9.60 x 2.79 x 1.47 in2.68 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

100~305VAC wide input range
Built-in active PFC
Protections: Short circuit / Over voltage/Over temperature
No load power consumption <0.5W
High efficiency up to 93%
Suitable for LED lighting and street lighting applications
Cooling by free air convection
100% full load burn-in test
5 years warranty


General SpecificationĀ

AC input voltage range 100~305VAC;142~431VDC
AC inrush current Cold start, 75 at 230VAC
DC adjustment range Ā±10% rated output voltage
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -40~+80Ā°C (refer to output derating curve)
Safety standards UL8750 approved
EMC standards EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH) 244x71x37.5
Packing 12pcs / 15.2kg


SKU: 025-045

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
