GSM18B09-P1J
Manufacturer MEAN WELL

GSM18B09-P1J

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

GSM18B09-P1J
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$25.04 CAD
10+
$23.79 CAD
20+
$23.29 CAD
50+
$22.79 CAD
100+
$22.29 CAD
200+
$21.78 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
80V-264V
Output Voltage
9V
Rated Current
2A
Power Rating
18W
Waterproof
Non-waterproof
Dimensions & Weight
3.11 x 2.13 x 1.3 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

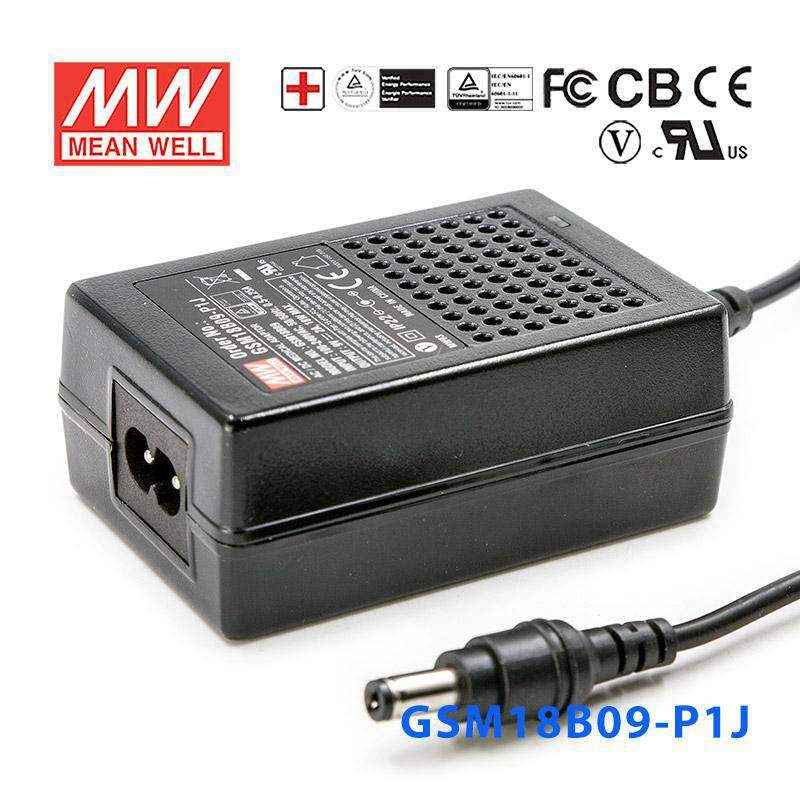

The MEAN WELL GSM18B09-P1J is a medical-grade AC/DC adapter delivering 9V at up to 2A (18W rated). It is designed for medical and home-healthcare devices, patient-monitoring equipment and portable medical instruments.

Key features

  • Output: 9V, 2A rated
  • Input: 80–264VAC / 113–370VDC
  • 2 × MOPP isolation (primary to secondary)
  • Protections: overload, over voltage
  • Typical efficiency 84%

Specifications

Model GSM18B09-P1J
Series GSM18B
Output 9V / 2A
Rated power 18W
Input 80–264VAC / 113–370VDC
Efficiency (typ.) 84%
Working temperature -25 to +60°C (-13 to 140°F)
Dimensions 79 × 54 × 33 mm (3.11 × 2.13 × 1.30 in)

Typical applications: medical and home-healthcare devices, patient-monitoring equipment and portable medical instruments.

Datasheet: GSM18B series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
