LPV-100-48
LPV-100-48
LPV-100-48
Manufacturer MEAN WELL

LPV-100-48

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

LPV-100-48 SKU: 33491
140 units available on request

Ready to ship in 1–2 business days. Please contact customer service to request this item. Requests are confirmed by our team before payment.

Contact customer service
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$33.71 CAD
10+
$32.02 CAD
20+
$31.35 CAD
50+
$30.68 CAD
100+
$30.00 CAD
200+
$29.33 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V-264V
Output Voltage
48V
Rated Current
2.1A
Power Rating
100W
Waterproof
IP67
Dimensions & Weight
7.48 x 2.05 x 1.46 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

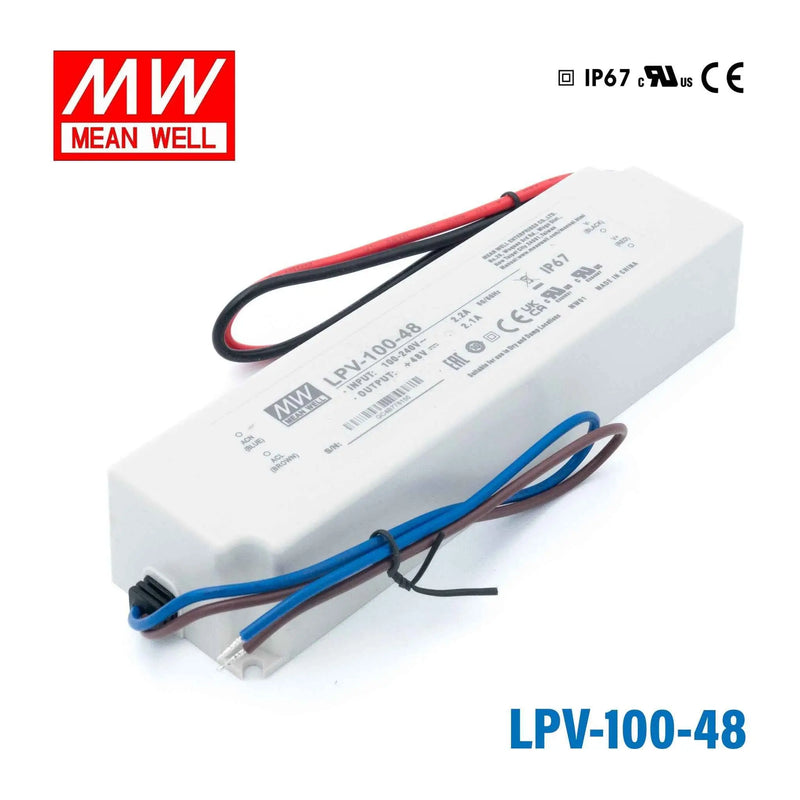

The MEAN WELL LPV-100-48 is a LED driver from the 100W LPV-100 series, delivering 48V at up to 2.1A (100.8W rated). It is designed for LED street, area and flood lighting, high-bay fixtures, signage, architectural and other indoor or outdoor LED installations.

Key features

  • Output: 48V, 2.1A rated, 100.8W
  • Input: 90–264VAC / 127–370VDC
  • IP67 rated housing
  • Protections: overload, over voltage
  • Typical efficiency 89%

Specifications

Model LPV-100-48
Series LPV-100
Output 48V / 2.1A, 100.8W
Input 90–264VAC / 127–370VDC
Efficiency (typ.) 89%
Protection rating IP67
Working temperature -25 to +70°C (-13 to 158°F)
Dimensions 190 × 52 × 37 mm (7.48 × 2.05 × 1.46 in)
Weight 0.61 kg

Typical applications: LED street, area and flood lighting, high-bay fixtures, signage, architectural and other indoor or outdoor LED installations.

Datasheet: LPV-100 series specification (PDF). Ships from Miami, FL.
