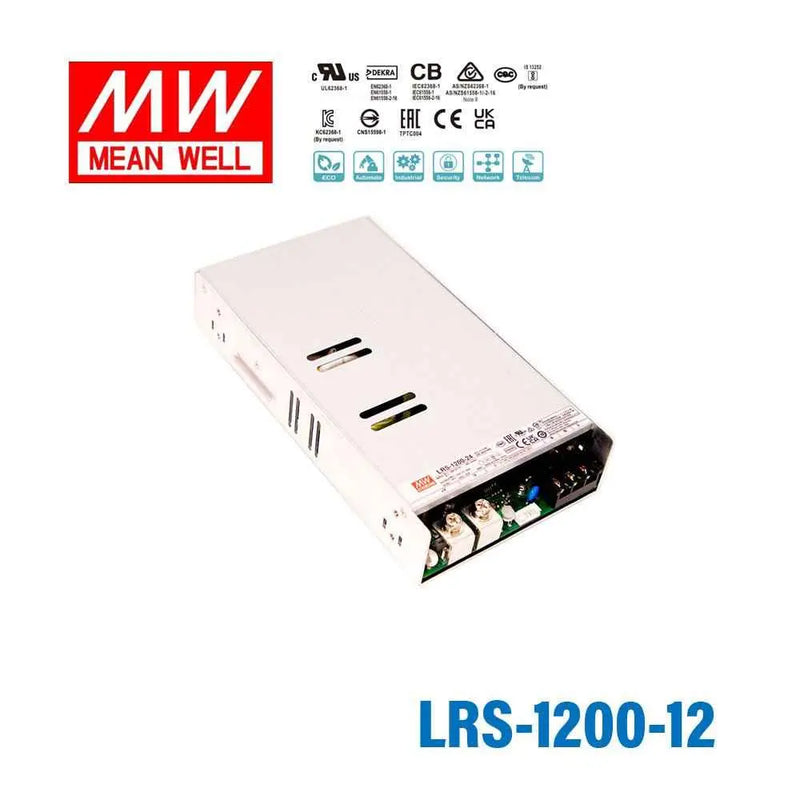

LRS-1200-12 MEAN WELL Enclosed Power Supply | HTD Electronics
Manufacturer MEAN WELL

LRS-1200-12

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

LRS-1200-12 SKU: 025-0689
72 units available on request

Ready to ship in 1–2 business days. Please contact customer service to request this item. Requests are confirmed by our team before payment.

Contact customer service
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$213.27 CAD
10+
$202.61 CAD
20+
$198.34 CAD
50+
$194.08 CAD
100+
$189.81 CAD
200+
$185.54 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
180V~305V
Output Voltage
12V
Rated Current
92A
Power Rating
1200W
Waterproof
Non-waterproof
Dimensions & Weight
8.85 x 4.88 x 1.61 in2.82 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features:

  • AC input 180~305Vac input
  • Global certificates in multi-fields (ITE 62368-1, Industrial 61558-1/-2-16)
  • Compact size with low profile (17W/inch³)
  • 150% peak power @5s
  • High efficiency up to 94%
  • Built-in constant current limiting circuit
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling, cooling fan speed control
  • Built-in DC OK/Remote Control/Remote Sense
  • -30~+70℃ wide range operation temperature
  • Over voltage category (OVC III)
  • Operating altitude up to 5000 meters
  • Conformal coating
  • 3 years warranty

General Specification

AC input voltage range

180 ~ 305Vac 255 ~ 431Vdc

AC inrush current (max.)

60A/230Vac 75A/277Vac

Overload protection

Output power >105% rated for more than 5 seconds then shut down o/p voltage, re-power on to recover

Constant current limiting for output power >150% rated for more than 5 seconds and then shut down o/p voltage, re-power on to recover

Over-voltage protection

(16 - 20V ) (29 - 36V) (41 - 50V) (57 - 67V)

Protection type : Shut down o/p voltage, re-power on to recover

Over Temperature

Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:4.2KVac I/P-FG:2.1KVac O/P-FG:1.25KVac

Working temperature

-30 - +70℃ (Refer to "Derating Curve")

Safety standards

CB IEC62368-1,IEC61558-1/-2-16

UL UL62368-1

DEKRA BS EN/EN62368-1,BS EN/EN61558-1/-2-16

RCM AS/NZS 62368-1,AS/NZS 61558-1/-2-16

CQC GB 4943.1

BSMI CNS15598-1

EAC TPTC 004 approved

Dimension (LxWxH)

225x124x41mm

SKU: 025-0689

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
