LRS-35-36
Manufacturer MEAN WELL

LRS-35-36

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

LRS-35-36
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$18.23 CAD
10+
$17.32 CAD
20+
$16.95 CAD
50+
$16.59 CAD
100+
$16.22 CAD
200+
$15.86 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V-264V
Output Voltage
36V
Rated Current
1A
Power Rating
35W
Waterproof
Non-waterproof
Dimensions & Weight
3.9 x 3.23 x 1.18 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

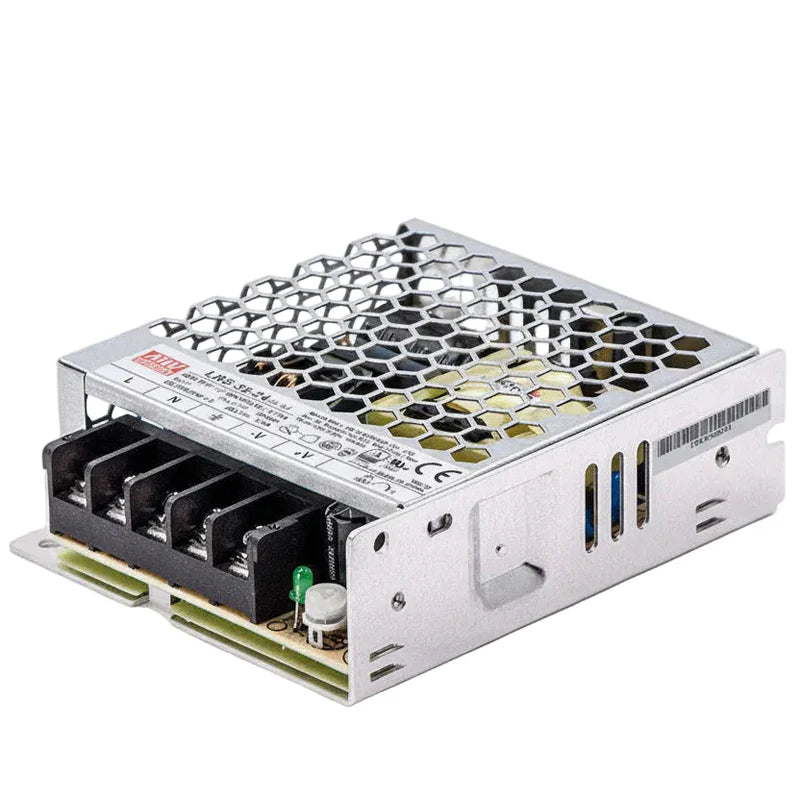

The MEAN WELL LRS-35-36 is an enclosed AC/DC power supply from the 35W LRS-35 series, delivering 36V at up to 1A (36W rated). It is designed for industrial control and automation, factory equipment, test and measurement, telecom and general-purpose DC systems.

Key features

  • Output: 36V, 1A rated, 36W
  • Input: 85–264VAC / 120–373VDC
  • Protections: over voltage
  • Typical efficiency 88%

Specifications

Model LRS-35-36
Series LRS-35
Output 36V / 1A, 36W
Input 85–264VAC / 120–373VDC
Efficiency (typ.) 88%
Working temperature -30 to +70°C (-22 to 158°F)
Dimensions 99 × 82 × 30 mm (3.90 × 3.23 × 1.18 in)
Weight 0.21 kg

Typical applications: industrial control and automation, factory equipment, test and measurement, telecom and general-purpose DC systems.

Datasheet: LRS-35 series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
