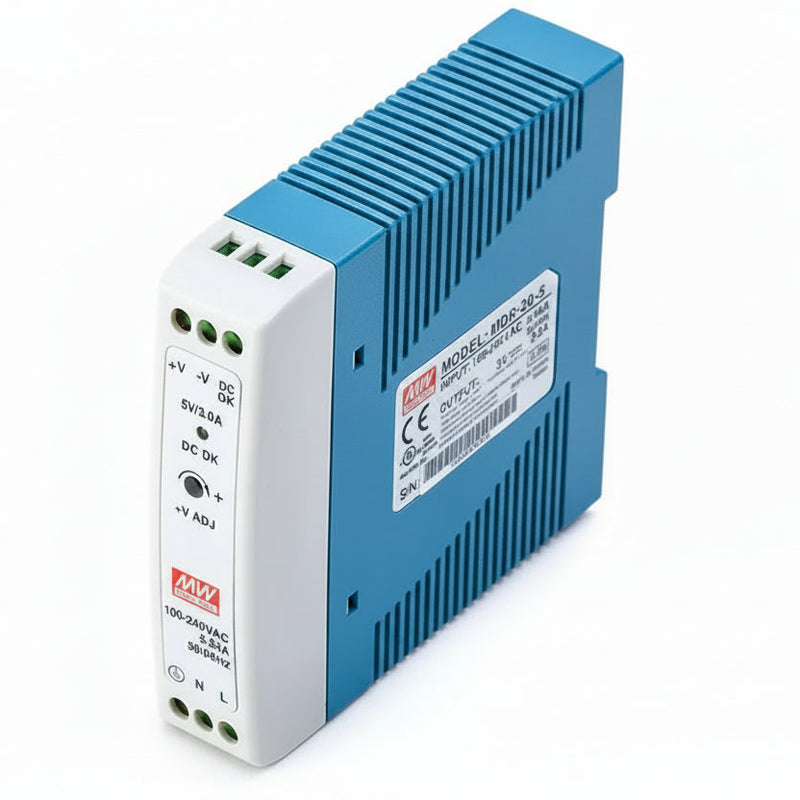

MDR-20-5 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

MDR-20-5

Availability: 209 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

MDR-20-5 SKU: 33611

144 more units available on request (ready in 1–2 business days). Contact customer service

Quantity
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$23.11 CAD
10+
$21.95 CAD
20+
$21.49 CAD
50+
$21.03 CAD
100+
$20.57 CAD
200+
$20.11 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
5V
Rated Current
3A
Power Rating
15W
Waterproof
Non-waterproof
Dimensions & Weight
3.93 x 3.54 x 0.88 in0.37 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Installed on DIN rail TS35 / 7.5 or 15
Protections: Short circuit / Overload / Over voltage
No load power consumption <0.75W
LED indicator for power on
DC OK signal output
Cooling by free air convection
100% full load burn-in test
3 years warranty


General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current Cold start, 20A at 115VAC, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~160% constant current limiting, auto-recovery
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 500ms, 30ms, 50ms
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature -20~+70°C (refer to output derating curve)
DC OK signal Open collector
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection I/P: 3 poles, O/P: 3 poles screw DIN terminal
Dimension (LxWxH) 22.5x90x100
Packing 72pcs / 14.7kg
SKU: 33611

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
