NSP-1600-24
Manufacturer MEAN WELL

NSP-1600-24

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

NSP-1600-24
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$545.33 CAD
10+
$518.06 CAD
20+
$507.16 CAD
50+
$496.25 CAD
100+
$485.34 CAD
200+
$474.44 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V-264V
Output Voltage
24V
Rated Current
67A
Power Rating
1600W
Waterproof
Non-waterproof
Dimensions & Weight
9.84 x 5 x 1.61 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

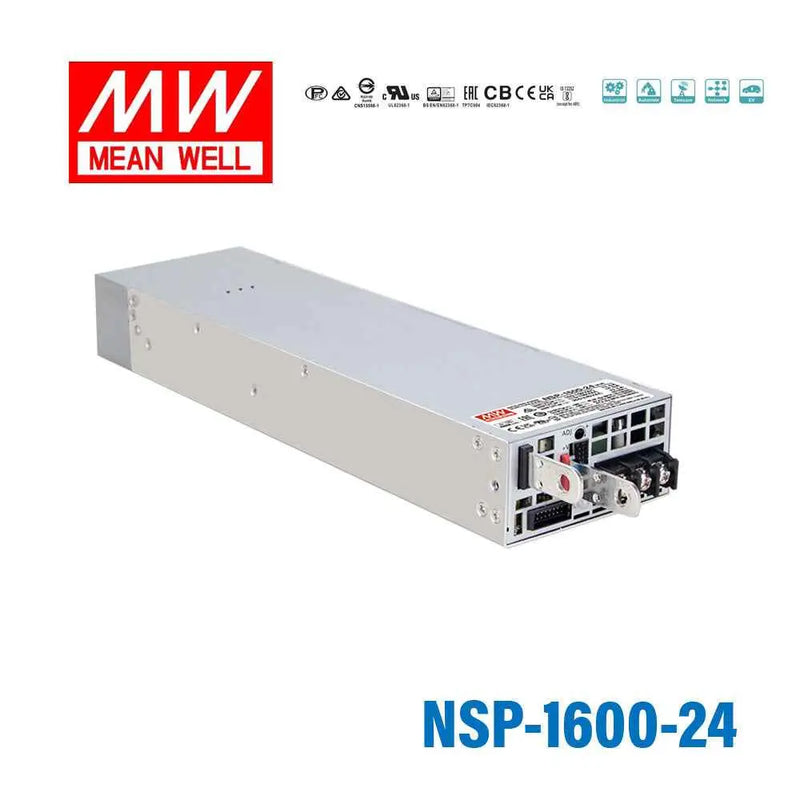

The MEAN WELL NSP-1600-24 is an enclosed AC/DC power supply delivering 24V at up to 67A (1608W rated). It is designed for industrial control and automation, factory equipment, test and measurement, telecom and general-purpose DC systems.

Key features

  • Output: 24V, 67A rated
  • Input: 90–264VAC / 250–400VDC
  • Forced air cooling by built-in DC fan
  • Built-in active PFC
  • Protections: overload, over voltage, over temperature
  • Typical efficiency 91%
  • 5-year manufacturer warranty

Specifications

Model NSP-1600-24
Series NSP-1600
Output 24V / 67A
Rated power 1608W
Input 90–264VAC / 250–400VDC
Efficiency (typ.) 91%
Working temperature -20 to +70°C (-4 to 158°F)
Dimensions 300 × 85 × 41 mm (11.81 × 3.35 × 1.61 in)
Weight 1.8 kg

Typical applications: industrial control and automation, factory equipment, test and measurement, telecom and general-purpose DC systems.

Datasheet: NSP-1600 series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
