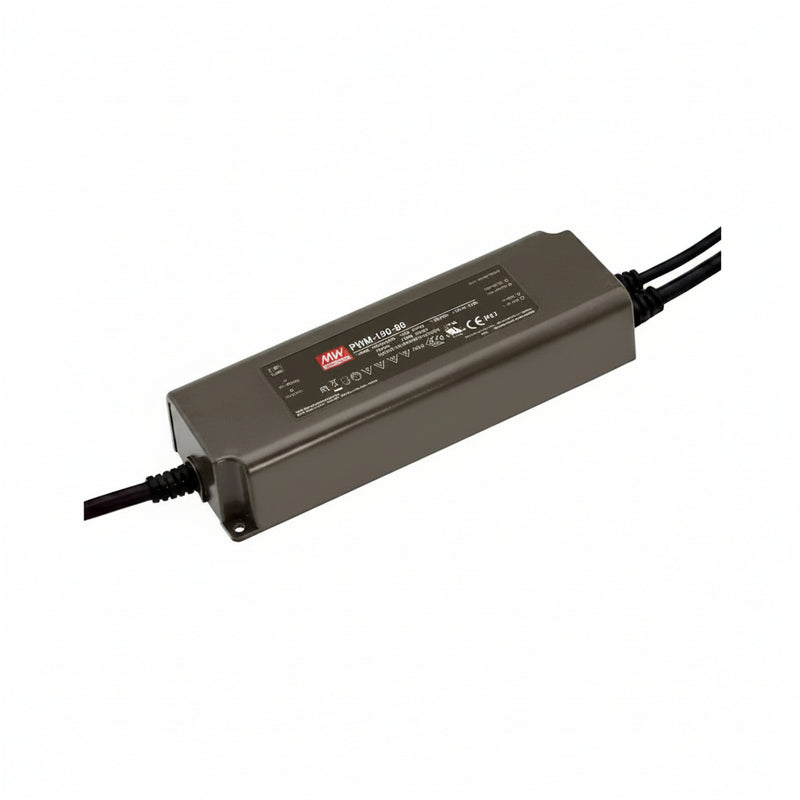

PWM-120-24 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

PWM-120-24

Availability: 20 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

PWM-120-24 SKU: 71618

240 more units available on request (ready in 1–2 business days). Contact customer service

Quantity
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$66.69 CAD
10+
$63.36 CAD
20+
$62.02 CAD
50+
$60.69 CAD
100+
$59.35 CAD
200+
$58.02 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~305V
Output Voltage
24V
Rated Current
5A
Power Rating
120W
Waterproof
IP67
Dimensions & Weight
7.51 x 2.48 x 1.47 in2.13 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input (up to 305VAC) / Full range
Constant voltage PWM style output
Built-in active PFC function
High efficiency up to 90.5%
No load power consumption <0.5W
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully isolated plastic case
Fully encapsulated with IP67 level
Class 2 power unit
Isolation class II, no F.G.
Built-in 3 in 1 dimming (dim-to-off);DALI
Suitable for dry, damp and wet location
Suitable for LED strip lighting
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 60A at 230VAC
Overload protection 108%~120% hiccup mode, auto-recovery
Over voltage protection Shut down o/p voltage, re-power on to recover
Over temp. protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -40~+90ÂșC (refer to output derating curve)
Safety standards UL8750, CSA C22.2 No.250.13-12,ENEC EN61347-1, EN61347-2-13 independent, EN62384 approved ; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output SJTW 14AWG x2C (30cm)+UL24645 18AWG x2C (30cm)
Dimension (LxWxH) (mm) 191x63x 37.5
Packing 15pcs / 15.6kg
SKU: 71618

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
