RSP-200-36
Manufacturer MEAN WELL

RSP-200-36

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

RSP-200-36
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$58.41 CAD
10+
$55.49 CAD
20+
$54.32 CAD
50+
$53.15 CAD
100+
$51.98 CAD
200+
$50.82 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
88V-264V
Output Voltage
36V
Rated Current
5.56A
Power Rating
200W
Waterproof
Non-waterproof
Dimensions & Weight
8.46 x 4.53 x 1.18 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

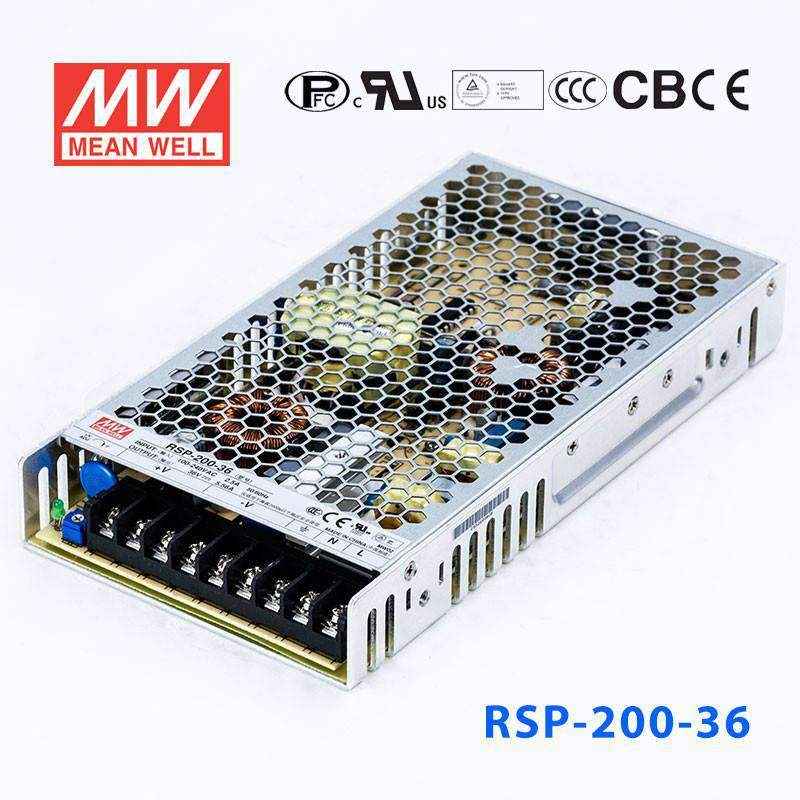

The MEAN WELL RSP-200-36 is a 200W single-output enclosed AC/DC power supply with PFC, delivering 36V at up to 5.56A. It is designed for industrial control and automation, factory equipment, test and measurement, telecom and general-purpose 36V systems.

Key features

  • Output: 36V, 5.56A rated
  • Universal AC input 88–264VAC with active PFC (PF > 0.95 at 230VAC)
  • Output voltage adjustable 32.4–39.6V
  • Low-profile enclosed design, 30 mm height
  • Protections: short circuit, overload, over voltage, over temperature
  • Typical efficiency 90%

Specifications

Model RSP-200-36
Series RSP-200
Output 36V / 5.56A, 200.16W
Input 88–264VAC / 124–370VDC
Efficiency (typ.) 90%
Protection rating Non-waterproof (enclosed)
Working temperature -30 to +70°C (see derating curve)
Dimensions 215 × 115 × 30 mm (8.46 × 4.53 × 1.18 in)
Weight 0.72 kg

Typical applications: industrial control and automation, factory equipment, test and measurement, telecom and general-purpose 36V systems.

Datasheet: RSP-200 series specification (PDF). Ships from Miami, FL.

Similar Models

Same product family and output voltage, with the closest available power ratings.
