HLG-40H-12
Manufacturer MEAN WELL

HLG-40H-12

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

HLG-40H-12 SKU: 025-3005
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$49.22 CAD
10+
$46.76 CAD
20+
$45.77 CAD
50+
$44.79 CAD
100+
$43.81 CAD
200+
$42.82 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V-305V
Output Voltage
12V
Rated Current
3.33A
Power Rating
40W
Waterproof
IP67
Dimensions & Weight
6.73 x 2.42 x 1.45 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

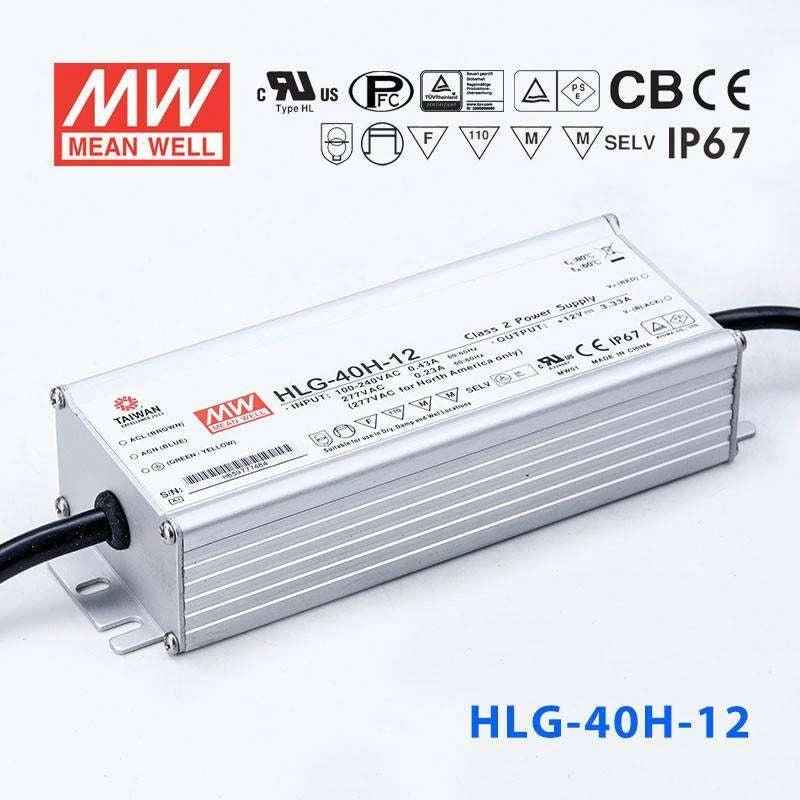

The MEAN WELL HLG-40H-12 is a 40W constant voltage + constant current LED driver, delivering 12V at up to 3.33A. It is designed for LED street and area lighting, flood and high-bay fixtures, signage, architectural and horticultural lighting, and other indoor or outdoor LED installations.

Key features

  • Output: 12V, 3.33A rated; constant current region 7.2–12V
  • Universal input 90–305VAC with active PFC (PF ≥ 0.98 at 115VAC)
  • Constant voltage + constant current output for LED loads
  • IP65 / IP67 metal housing for indoor and outdoor use
  • Protections: short circuit, overcurrent, over voltage, over temperature
  • Typical efficiency 86.5%

Specifications

Model HLG-40H-12
Series HLG-40H
Output 12V / 3.33A, 39.96W
Input 90–305VAC / 127–431VDC
Efficiency (typ.) 86.5%
Protection rating IP65 / IP67
Working temperature Tcase -40 to +80°C
Dimensions 171 × 61.5 × 36.8 mm (6.73 × 2.42 × 1.45 in)
Weight 0.73 kg

Typical applications: LED street and area lighting, flood and high-bay fixtures, signage, architectural and horticultural lighting, and other indoor or outdoor LED installations.

Datasheet: HLG-40H series specification (PDF). Ships from Miami, FL.

SKU: 025-3005

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
