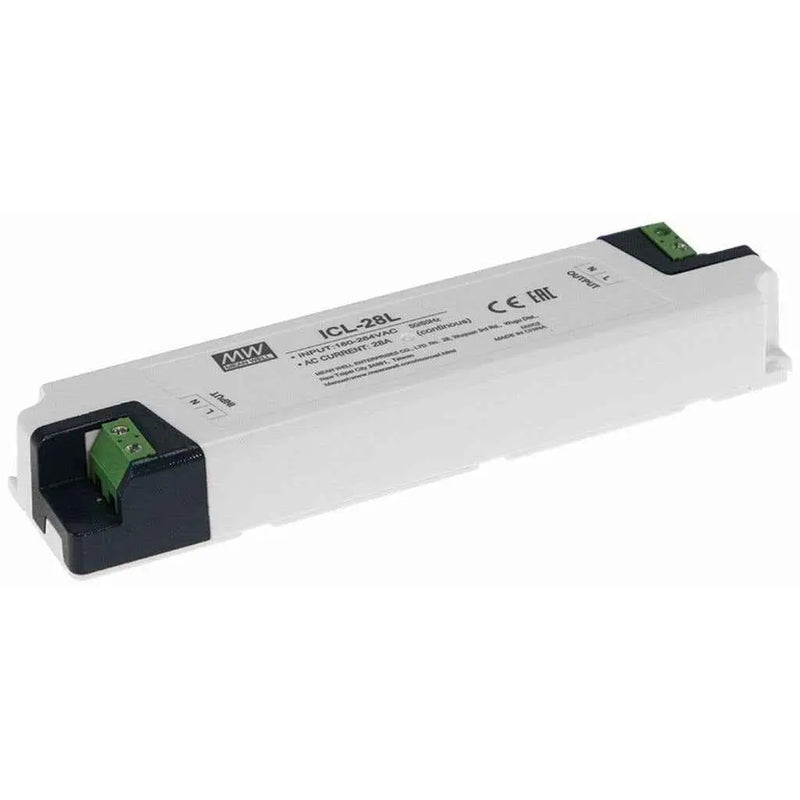

MEAN WELL ICL-28L power protection module
Manufacturer MEAN WELL

ICL-28L

Availability: Out of stock
28 A180V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

ICL-28L
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$89.42 CAD
10+
$84.95 CAD
20+
$83.16 CAD
50+
$81.37 CAD
100+
$79.58 CAD
200+
$77.80 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
180V~264V
Rated Current
28A
Waterproof
Non-waterproof
Dimensions & Weight
6.88 x 1.65 x 0.94 in0.34 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

 48A inrush limiting current, 28A continuous
180~264VAC AC input
Integrated bypass relay, no simple NTC
Internal thermal protection
-30~+70°C wide working temperature
Terminal type with screws
3 years warranty

General Specification

AC input voltage  180~264VAC
Inrush current limiting 48A
AC input power6440 VA
Internal protection Thermal fuse protects overload and fire
Working temperature -30~+70°C
Operating altitude 5000 meters
Safety standards LVD BS EN/EN62368-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11
Case No PLM-40
Dimension (LxWxH) 175x42x24
Packing 84pcs / 14kg
Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
