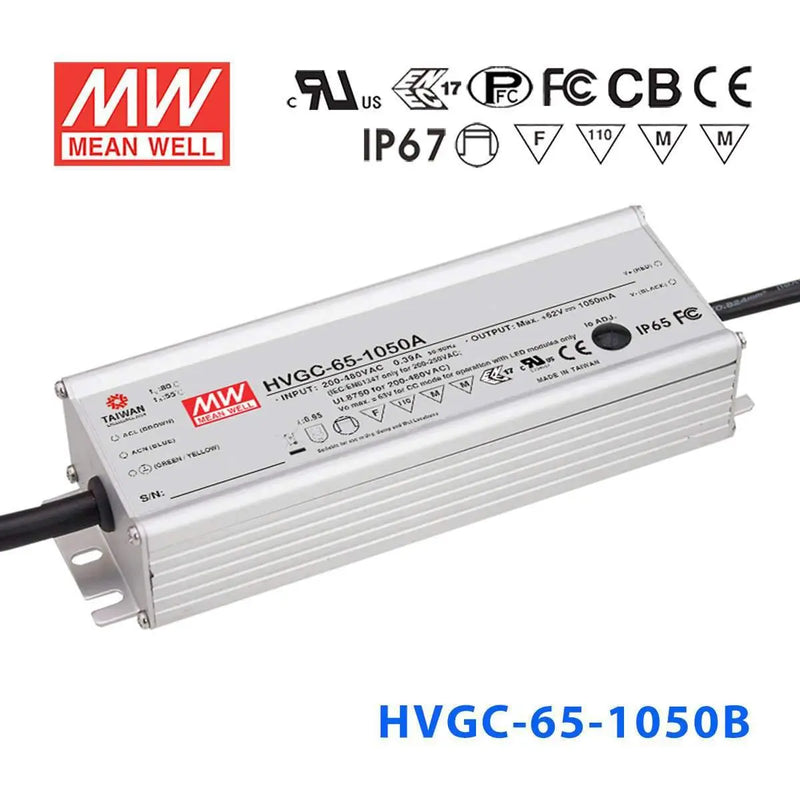

HVGC-65-1050B MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

HVGC-65-1050B

Availability: Out of stock
65.1 W62 V1.05 AIP67180V–528V in

Request a Backorder

Submit your request and we will confirm lead time.

HVGC-65-1050B
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$84.61 CAD
10+
$80.38 CAD
20+
$78.69 CAD
50+
$77.00 CAD
100+
$75.30 CAD
200+
$73.61 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
180V~528V
Output Voltage
62V
Rated Current
1.05A
Power Rating
65.1W
Waterproof
IP67
Dimensions & Weight
7.44 x 2.42 x 1.44 in1.69 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with Class design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 180~528VAC ; 254~747VDC
AC inrush current (max.) Cold start 25A/480VAC
Over temperature protection Shut down o/p voltage, recovers automatically after temperature goes down
Over voltage protection 110%~140%Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -40~+80ÂșC (refer to output derating curve)
Safety standards UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3,(@load„¶0%)FCC Part 15 Subpart B
Dimension (LxWxH)(mm) 189 x 61.5 x 36.8 mm

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
