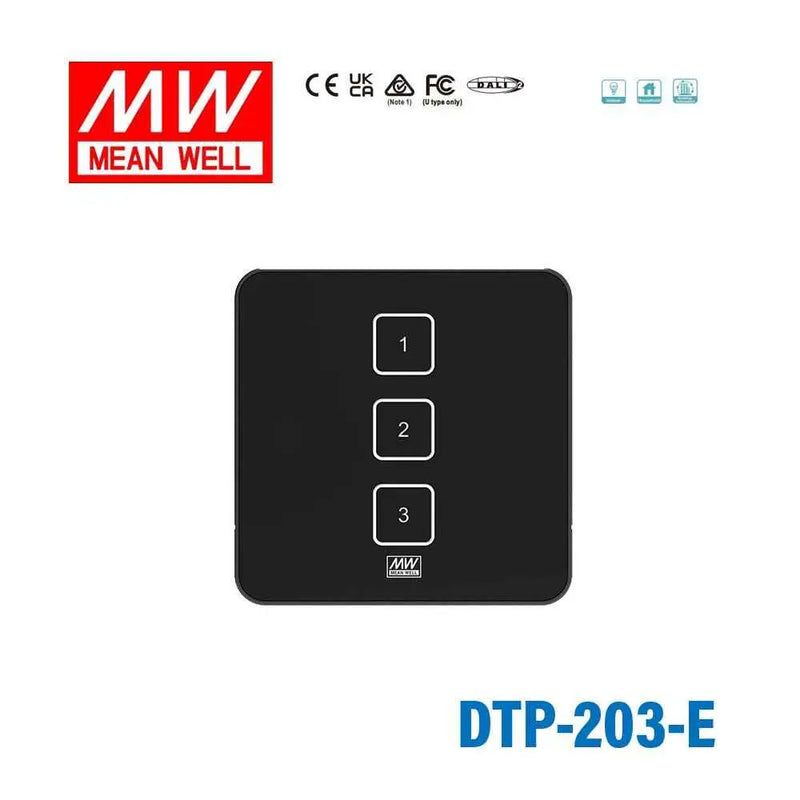

DTP-203-E
Manufacturer MEAN WELL

DTP-203-E

Availability: Out of stock
9.5V–22.5V in

Request a Backorder

Submit your request and we will confirm lead time.

DTP-203-E
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$126.66 CAD
10+
$120.33 CAD
20+
$117.79 CAD
50+
$115.26 CAD
100+
$112.73 CAD
200+
$110.19 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
9.5V~22.5V
Waterproof
Non-waterproof
Dimensions & Weight
3.38 x 3.38 x 1.04 in0.28 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features:
⦁ DALI-2 certified touch panel
⦁ Compliant with IEC-62386-301 push button
⦁ Compliant with IEC-62386-332 feedback
⦁ Compatible for DALI-2 controllers
⦁ Powered by DALI Bus
⦁ Configurable functionality via MEAN WELL DLC-02 software
⦁ Each button can trigger multiple modes:
⦁ Short Click/Double Click/Long Press, to trigger scene or grouping functions
⦁ Backlight brightness adjustable
⦁ Touch panel volume adjustable
⦁ 5 years warranty
General Specification:
Input Voltage
DALI bus 9.5V~22.5V DC according to IEC62386 regulation
Current Consumption
Typ. Current <4mA (at 16V) Inrush Current <10mA
Protocol
DALI-2
DALI Standard
IEC62386-101, 103, 301, 332
Button Event
Short click, Double click, Long press
Backlight
Three adjustable levels: high brightness, low brightness, and off
Volume
Optional to turn on or off
Operating Temperature
-20 - +50 °C
Safety standards
BS EN/EN61347-1; BS EN/EN61347-2-11
Dimension (LxWxH)
86 x 86 x 26.5mm

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
