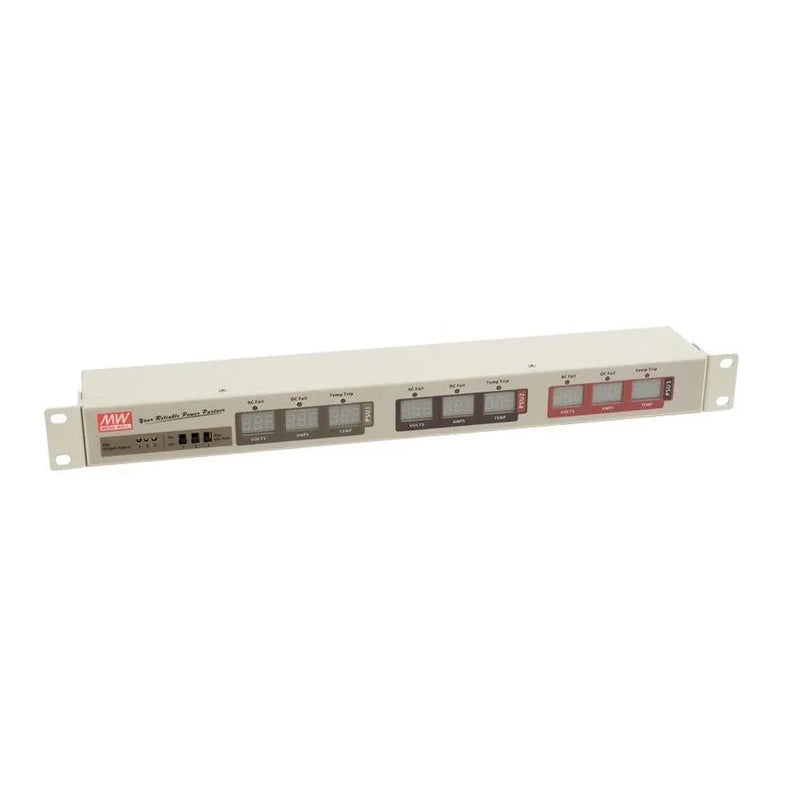

RCP-MU MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

RCP-MU

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

RCP-MU
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$284.75 CAD
10+
$270.51 CAD
20+
$264.82 CAD
50+
$259.12 CAD
100+
$253.43 CAD
200+
$247.73 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Waterproof
Non-waterproof
Dimensions & Weight
17.32 x 2.67 x 1.73 in2.53 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

1U low profile
19-inch rack mounting
Control and monitor up to 3 RCP-1000 units
Suitable for all kinds of RCP output (12V, 24V, 48V)
Digital meters for output voltage, output current, and internal temperature on the front panel
Potential meter for adjusting the output voltage of RCP-1000 unit on the front panel
Relay contacts and LED indicators for AC to fail, DC fail, and over-temperature warning
Removable fixing accessory
5 years warranty



General Specification

AC input voltage range 90~264VAC | 127~370VDC
Withstand voltage I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVDC
Working temperature -20~+60ºC (refer to output derating curve)
Safety standards Design refers to EAC TP TC 004 approved
EMC standards EN55032 class A, EN61000-4-2,3,4,5,6,8,11
Case No 701A
Dimension (LxWxH) (mm) Rack 440 x 68 x 44
Packing 1.15Kg; 6pcs/8Kg/1.27CUFT
Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
