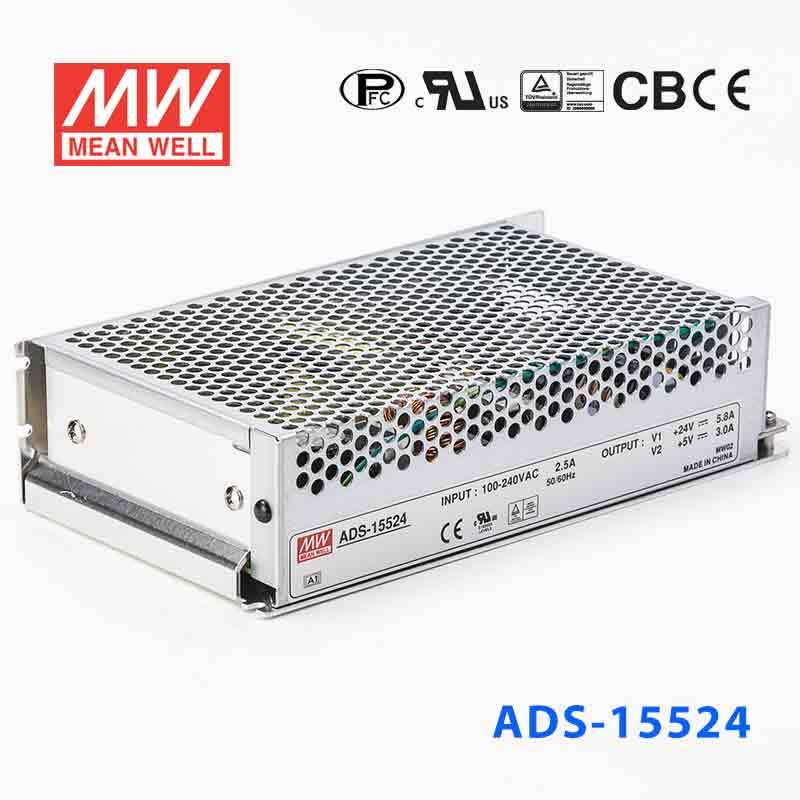

MEAN WELL ADS-15524 security power supply with battery backup
Manufacturer MEAN WELL

ADS-15524

Availability: Out of stock
154.2 W24 V5.8 A88V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

ADS-15524 SKU: 19481
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$94.77 CAD
10+
$90.03 CAD
20+
$88.14 CAD
50+
$86.24 CAD
100+
$84.35 CAD
200+
$82.45 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
88V~264V
Output Voltage
24V
Rated Current
5.8A
Power Rating
154.2W
Waterproof
Non-waterproof
Dimensions & Weight
7.83 x 4.33 x 1.96 in2.20 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC 67KHz, PWM 134KHz
2 years warranty

General Specification

I/P-O/P:3KVAC; I/P-FG:2.0KVAC; O/P-FG:0.5KVAC
AC input voltage range 88~264VAC; 124~370VDC
AC inrush current COLD START 23A/115VAC; 45A/230VAC
Leakage current

<1mA / 240VAC
Overload protection 105%~135% rated output power
Over-voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1000ms, 2000ms, 24ms
Withstand voltage
Working temperature -10~+60°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Case No. 906
Dimension (LxWxH) 199x110x50 mm
Packing 16pcs / 16kg
SKU: 19481

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
