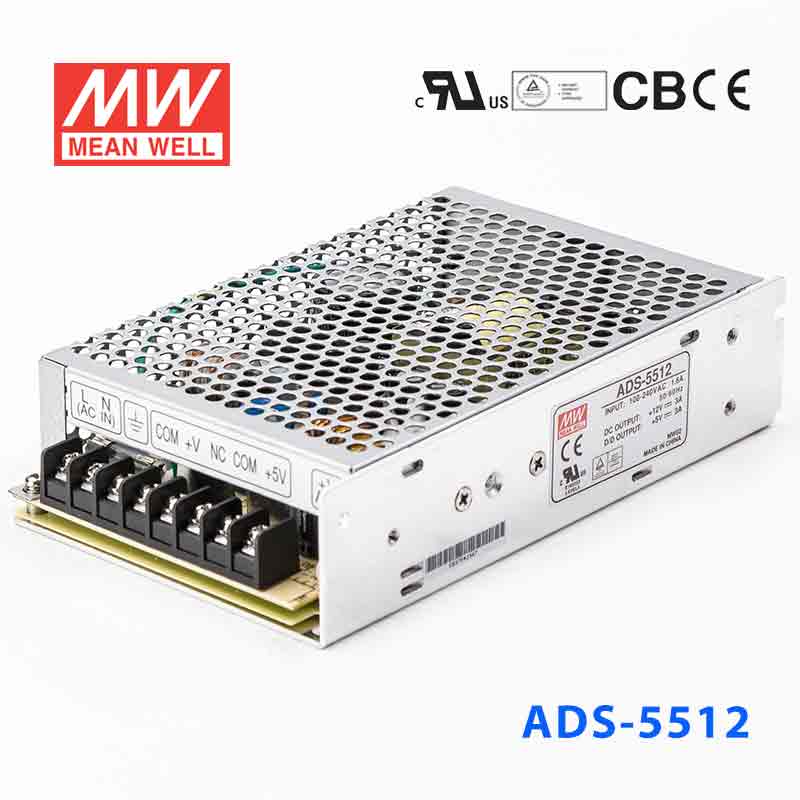

MEAN WELL ADS-5512 security power supply with battery backup
Manufacturer MEAN WELL

ADS-5512

Availability: Out of stock
51 W12 V3 A88V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

ADS-5512
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$51.28 CAD
10+
$48.72 CAD
20+
$47.69 CAD
50+
$46.66 CAD
100+
$45.64 CAD
200+
$44.61 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
88V~264V
Output Voltage
12V
Rated Current
3A
Power Rating
51W
Waterproof
Non-waterproof
Dimensions & Weight
6.25 x 3.81 x 1.49 in1.25 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Protections: Short circuit/ Overload/ Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45KHz
2 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current COLD START 20A/115VAC; 40A/230VAC
Leakage current

<1mA / 240VAC
Overload protection 105%~150% rated output power
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1400ms, 50ms, 80ms
Withstand voltage I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVAC
Working temperature -10~+60°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3
Case No. 901
Dimension (LxWxH) 159x97x38 mm
Packing 24pcs / 13.7kg

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
