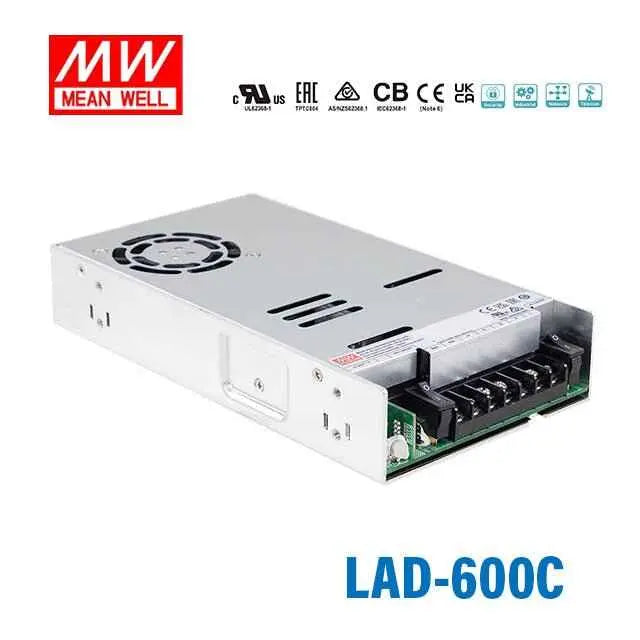

LAD-600C
Manufacturer MEAN WELL

LAD-600C

Availability: Out of stock
600 W41.5 V11.45 A90V–132V in

Request a Backorder

Submit your request and we will confirm lead time.

LAD-600C
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$124.26 CAD
10+
$118.05 CAD
20+
$115.56 CAD
50+
$113.08 CAD
100+
$110.59 CAD
200+
$108.11 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~132V
Output Voltage
41.5V
Rated Current
11.45A
Power Rating
600W
Waterproof
Non-waterproof
Dimensions & Weight
8.85 x 4.88 x 1.61 in2.24 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Built-in battery charger and UPS function
TTL signals for status detection: AC OK, Battery disconnect, Battery reverse polarity, Battery low, Battery full and Discharge
Forced UPS mode for battery maintenance
Protections: Short circuit/Overload/Over voltage/Over temperature/Battery low voltage/Battery reverse polarity (No damage)
-20 ~ +60°C wide operating temperature
Output voltage adjustable (-2%~+5%) for CH1 by VR
Suitable for lead acid and lithium-ion batteries
Design refer to GB17945 system requirement
1U low profile (30mm)
3 years warranty

General Specification

AC input voltage range 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (Default switch at 230VAC)
AC inrush current COLD START 60A/115VAC 60A/230VAC
Overload protection CH1:105 ~ 135% CH2:90 ~ 110%
Over voltage protection CH1:47 ~ 55V
Setup, rise, hold up time 2000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -20~+60°C
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010
EMC standards EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8
Dimension (LxWxH) 225x124x41
Packing 1.02Kg; 12pcs/13.5Kg/0.78CUFT

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
