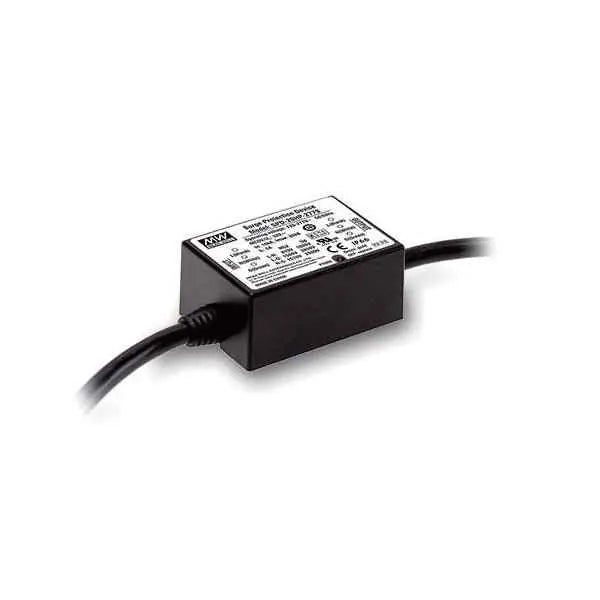

SPD-20HP-277S
Manufacturer MEAN WELL

SPD-20HP-277S

Availability: Out of stock
IP66120V–320V in

Request a Backorder

Submit your request and we will confirm lead time.

SPD-20HP-277S
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$24.43 CAD
10+
$23.21 CAD
20+
$22.72 CAD
50+
$22.23 CAD
100+
$21.74 CAD
200+
$21.25 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
120V~320V
Waterproof
IP66
Dimensions & Weight
2.81 x 2.66 x 1.25 in0.52 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Series connection style
UL1449 type 4 component assemblies
20kA maximum discharge current(Imax), 8/20μs
Low MLV/U
Thermally protected
Double insulation able wire
LED status indicator
IP66 design for indoor or outdoor installations
Suitable for LED driver surge protection with Class I insulation
20KV surge protection capability

General Specification

MCOV 320VAC
UC 320VAC
LED indicator Illuminate when on, off when need servicing
Imax 20kA, 8/20μs
Working temperature -40~+75ºC
Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005 UL1449
Response time <25ns
Case No SPD-20A
Dimension (LxWxH) (mm) 71.6 x 67.7 x 32
Packing 0.233Kg/Unit ; 1.67Kg/one box(6pcs); 9Kg/carton(including 5 boxs); 0.243Kg/Unit ; 1.73Kg/one box(6pcs); 9.3Kg/carton(including 5 boxs)
