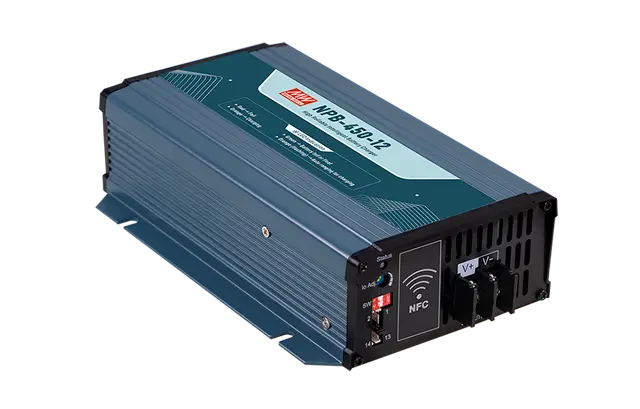

NPB-450-12-NFC
Manufacturer MEAN WELL

NPB-450-12-NFC

Availability: Out of stock
420 W14.4 V25 A90V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

NPB-450-12-NFC
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$201.03 CAD
10+
$190.98 CAD
20+
$186.96 CAD
50+
$182.94 CAD
100+
$178.92 CAD
200+
$174.90 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
14.4V
Rated Current
25A
Power Rating
420W
Waterproof
Non-waterproof
Dimensions & Weight
8.07 x 5.11 x 2.16 in2.24 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V, 54~100V; Please refer to page 9 for setting)
Built-in CANBus protocol for control, setting and monitoring
Set up charging parameters easily via NFC interface(NPB-450-xxNFC)
Programable charging curve via SBP-001
Manual setting for 2/3 stage and 4 built-in charging vurves via DIP S.W
Multiple Protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery reverse polarity (No damage)
Charger OK and Battery Full signal
Temperature compensation function to prolong battery life (Lead-acid only)
Temperature compensation function to prolong battery life (Lead-acid only)
-30°C ~+70°C wide operating temperature
Thermal controlled DC fan for noise reduction
Remote ON/OFF control
Smart programmer available (Order NO.: SBP-001, sold separately)
Carry handle accessory available(Order No.: Carry handle, sold separately)
Comply with 62368-1 + 60335-1/-2-29 dual certification
Suitable for leac-acide (Pb) and li-ion batteries
3 years warranty

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
