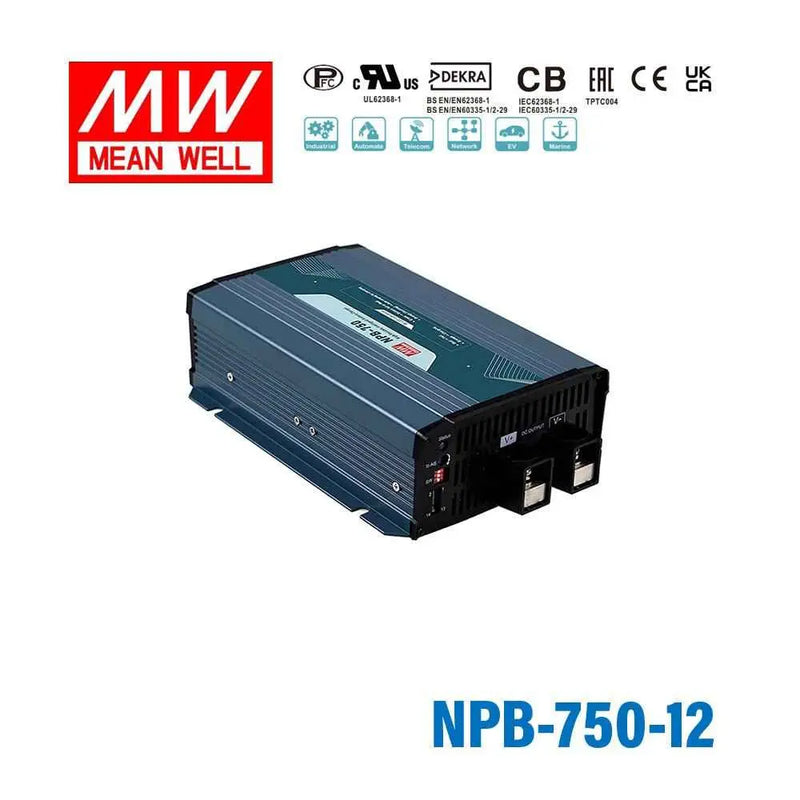

NPB-750-12
Manufacturer MEAN WELL

NPB-750-12

Availability: Out of stock
750 W14.4 V43 A90Vā€“264V in

Request a Backorder

Submit your request and we will confirm lead time.

NPB-750-12
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$267.43 CAD
10+
$254.06 CAD
20+
$248.71 CAD
50+
$243.36 CAD
100+
$238.01 CAD
200+
$232.66 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
14.4V
Rated Current
43A
Power Rating
750W
Waterproof
Non-waterproof
Dimensions & Weight
9.05 x 6.22 x 2.63 in4.05 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.
  • Intelligent general type highly reliable and wide outputĀ range charger
  • Ultra wide charging range auto sensing function [10.5~21V, 21~42V, 42~80V, 54~100V (NPB-450 only)]
  • Built-in CANbus protocol
  • Charging voltage, charging current and timeout can be programmed through SBP-001
  • Charging current adjustable through panel (50~100% of rated current)
  • 4 default charging curves can be selected through DIP switch on panel
  • 2 or 3 stage charging can be adjusted through DIP switch on panel
  • NTC for temperature compensation (ENC series)
  • Implement temperature controlled low noise fan
  • Auto derating when over temperature
  • -30 ~+70oC wide operating temperature, minimized environmental limitations
  • Suitable for lead-acid and lithium batteries
  • Comply with UL/EN 62368-1 and IEC/EN62368-1/-2-29 dual certifications
  • Optional hand carry handle (Order No.: Carry Handle)
  • 3 years warranty


Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
