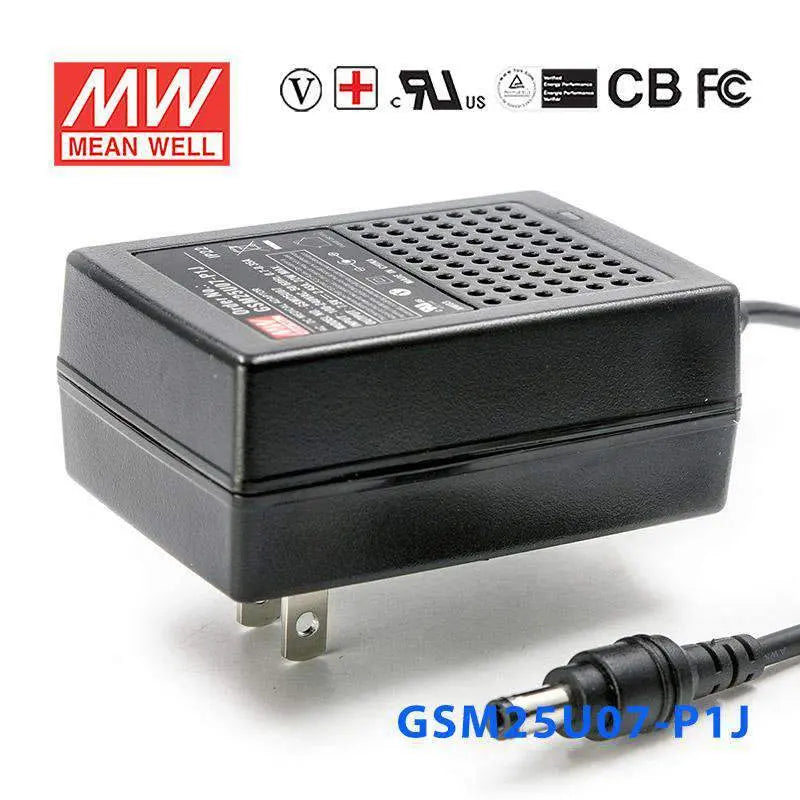

GSM25U07-P1J MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

GSM25U07-P1J

Availability: Out of stock
22 W7.5 V2.93 A80V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

GSM25U07-P1J
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$22.48 CAD
10+
$21.36 CAD
20+
$20.91 CAD
50+
$20.46 CAD
100+
$20.01 CAD
200+
$19.56 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
80V~264V
Output Voltage
7.5V
Rated Current
2.93A
Power Rating
22W
Waterproof
Non-waterproof
Dimensions & Weight
3.11 x 2.12 x 1.29 in0.47 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
2 pole USA plug
Medical safety approved (2 x MOPP between primary to secondary)
Low leakage current <50uA
No load power consumption < 0.1W
High efficiency up to 88%
Class II power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
LED indicator for power on
Optional lock type DC plug
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 80~264VAC ; 113~370VDC
AC inrush current (max.) Cold start, 55A at 230VAC
Overload protection 105%~170% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 4KVAC
Working temperature -25~+60°C (refer to output derating curve )
Safety standards ANSI/AAMI ES60601-1,ES60601-1-11 approved
EMC standards FCC part 15 class B
Length of output cable 120cm of UL1185, 16AWG for 5~9V ; 180cm of UL1185, 16AWG for 12V;180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH) 79x 54x 33mm
Standard DC plug P1J: 2.1øx5.5øx11mm / C+, tuning fork type

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
