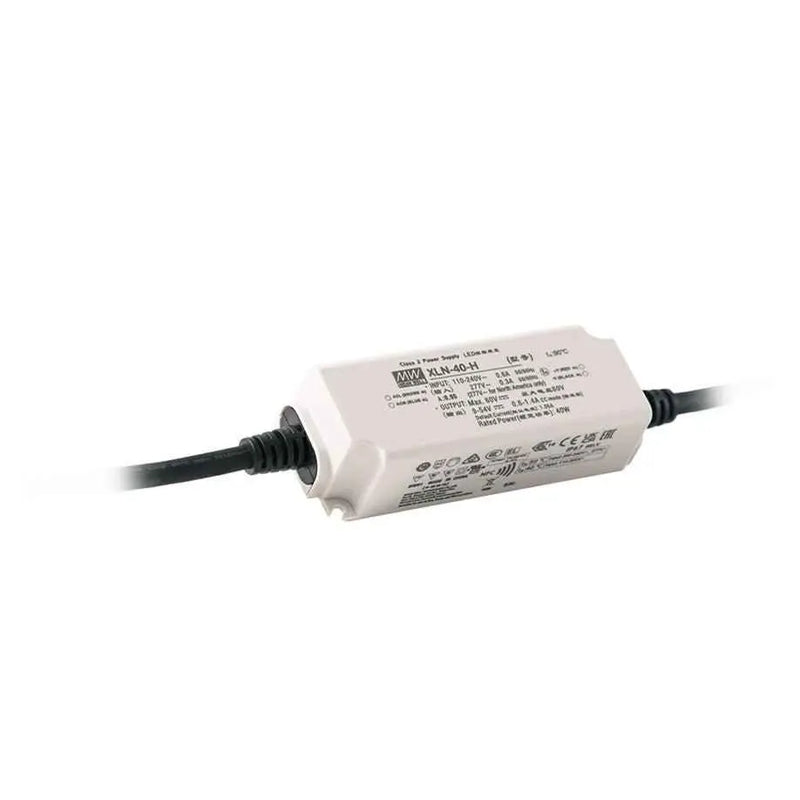

MEAN WELL XLN-40-H LED driver
Manufacturer MEAN WELL

XLN-40-H

Availability: Out of stock
40 W60 V1.05 AIP67100V–305V in

Request a Backorder

Submit your request and we will confirm lead time.

XLN-40-H
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$60.86 CAD
10+
$57.82 CAD
20+
$56.60 CAD
50+
$55.38 CAD
100+
$54.17 CAD
200+
$52.95 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V~305V
Output Voltage
60V
Rated Current
1.05A
Power Rating
40W
Waterproof
IP67
Dimensions & Weight
4.48 x 1.25 x 1.73 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features:

  • Constant power mode output with multiple stages selectable by NFC setting(H-type)
  • Constant voltage mode output (12V/24V)
  • Plastic housing with class II/2 and PFC design
  • Flicker-free, complying with IEEE1789/ErP
  • Standby power consumption <0.5W
  • Meet emergency lighting (EL) function application
  • Fully Encapsulated with IP67
  • Minimum dimming level 0.1% (DALI-2 DT6)
  • Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
  • 5 years warranty

General Specification

AC input voltage range

100 ~ 305VAC 141 ~ 431VDC

AC inrush current (max.)

COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Overload protection

105 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 13 ~ 16V | 26 ~ 32V |

Shut down and latch off o/p voltage, and re-power on to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved;

Dimension (LxWxH)

114x44x32mm

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
