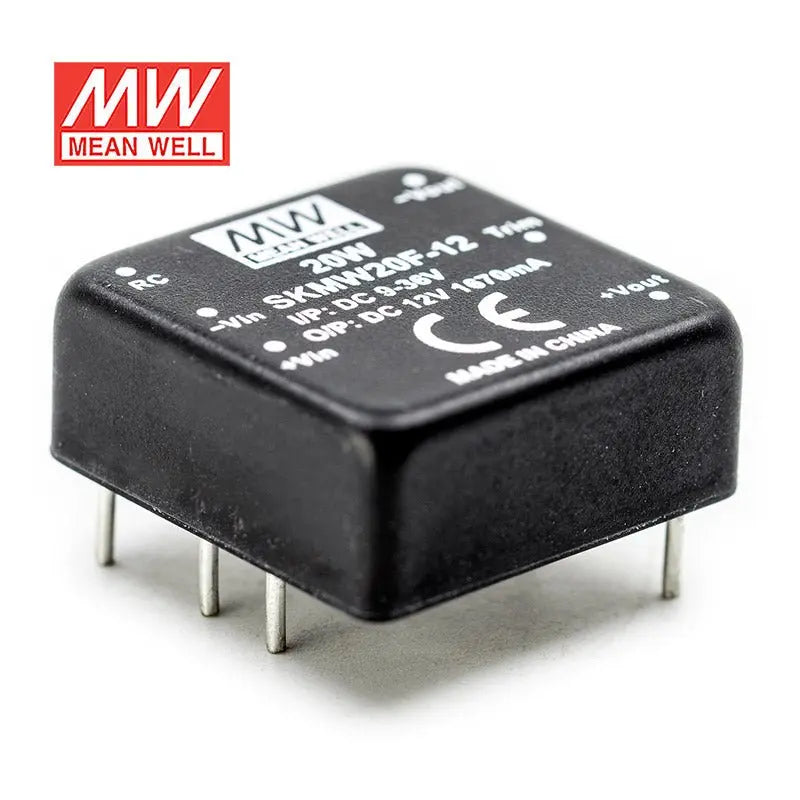

SKMW20F-1220W 12V 1.67A DC-DC Converter

Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

SKMW20F-12 SKU: MWMW-08208011
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$32.77 CAD
10+
$31.13 CAD
20+
$30.48 CAD
50+
$29.82 CAD
100+
$29.17 CAD
200+
$28.51 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
9V~36V
Output Voltage
12V
Rated Current
1.67A
Power Rating
20W
Waterproof
Non-waterproof
Dimensions & Weight
1 x 1 x 0.40 in0.03 lbs

Datasheet (PDF)

If the PDF doesn’t load here, click “Open PDF”.

Features

DIP 1"x1" package with industry-standard pinout
Operating temperature range -40~+85°C
4:1 ultrawide input range
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Protection: Short circuit(continuous)/Overload/Over voltage/Input under voltage
1.5KVDC I/O isolation

Remote ON/OFF control and trimming output (±10%)

3 years warranty


General Specification

Voltage accuracy ±1.5%
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, and Z axes
Cooling Free-air convection
Short circuit protection Continuous, automatic recovery
Working temperature -40°C to +85°C
EMC Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6
Temp. Coefficient 0.03% / ℃ (0 ~ 60℃)
Dimension (LxWxH) (mm) 25.4*25.4*10.2mm (1*1*0.4 inch)
Potting material Black coated copper with a non-conductive base
SKU: MWMW-08208011
