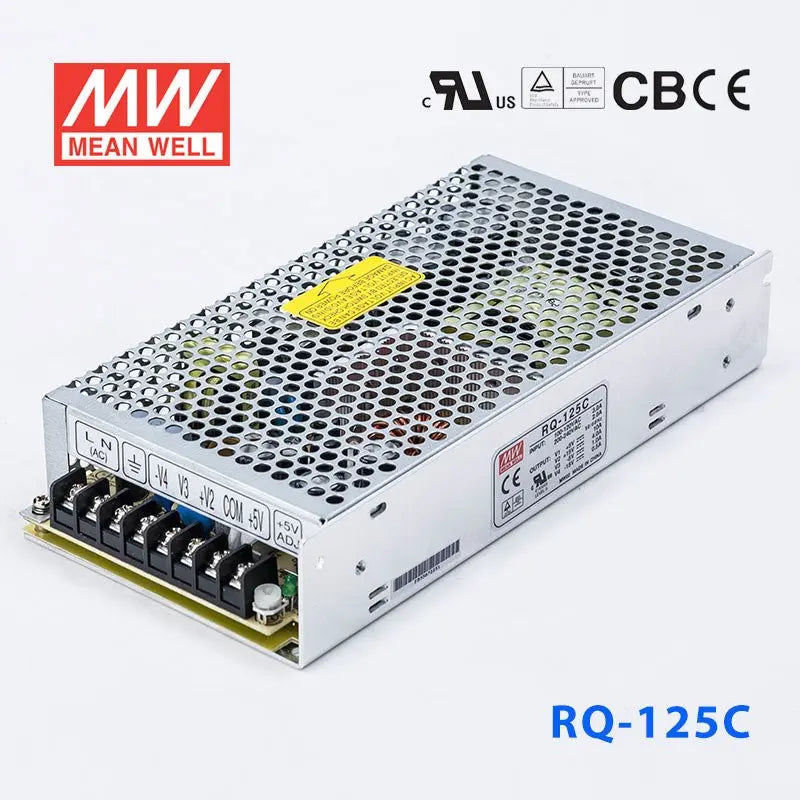

RQ-125C MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

RQ-125C

Availability: Out of stock
122.5 W5 V10 A88V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

RQ-125C
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$56.54 CAD
10+
$53.71 CAD
20+
$52.58 CAD
50+
$51.45 CAD
100+
$50.32 CAD
200+
$49.19 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
88V~264V
Output Voltage
5V
Rated Current
10A
Power Rating
122.5W
Waterproof
Non-waterproof
Dimensions & Weight
7.83 x 3.85 x 1.49 in1.54 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Universal AC input/Full range
LED indicator for power on
High operating temperature up to 70°C
Withstand 5G vibration test
All using 105°C long life electrolytic capacitors
High efficiency, long life and high reliability
Cooling by free air convection
3 years warranty


General Specification

AC input voltage range 88~264VAC, 125~373VDC
AC inrush current (max.) 50A at 230VAC
DC adjustment range ±10% by potentiometer for CH1
Overload protection 110%~150%
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature -25~+70°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL62368-1, TUV EN62368-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2)
Connection Terminal block for input and output
Dimension (LxWxH) 199x 98x 38
Case No. 902
Packing 20pcs /14kg

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
