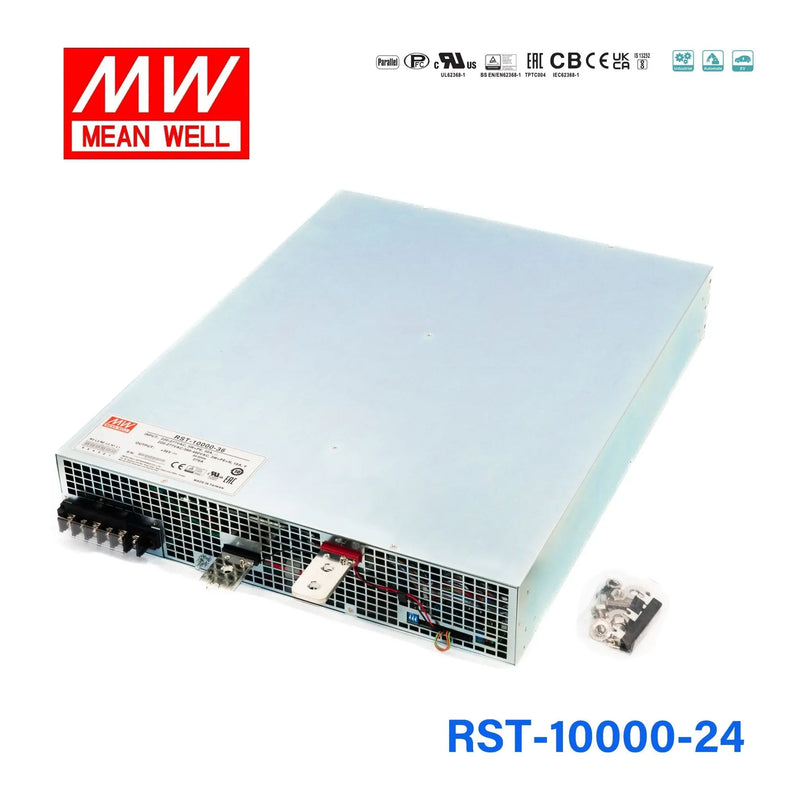

RST-10000-24 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

RST-10000-24

Availability: Out of stock
9600 W24 V400 A196Vā€“530V in

Request a Backorder

Submit your request and we will confirm lead time.

RST-10000-24 SKU: 70836
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$4,580.28 CAD
10+
$4,351.27 CAD
20+
$4,259.66 CAD
50+
$4,168.05 CAD
100+
$4,076.45 CAD
200+
$3,984.84 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
196V~530V
Output Voltage
24V
Rated Current
400A
Power Rating
9600W
Waterproof
Non-waterproof
Dimensions & Weight
21.25 x 16.69 x 3.28 in51.80 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

wide input range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm
High efficiency up to 91%
Built-in fan speed control
High efficiency up to 91%
Built-in remote sense and ON/OFF control
Built-in 12V/0.1A auxiliary power
5 years warranty

General SpecificationĀ

AC input voltage range

3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC
AC inrush current (max.) Cold start, 50A (RST-5000); 100A(RST-10000) at 400VAC(3 4-wire/Y) 75A(RST-5000); 150A(RST-10000) at 230VAC (3 3-wire/ )
DC adjustment range -2%~+20% rated output voltage
Overload protection Range 100%~112% constant current limiting,
Overload protection Type auto-recovery (can adjust to delay shut off)
Over voltage protection Range 125%~140%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70Ā°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class A, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
