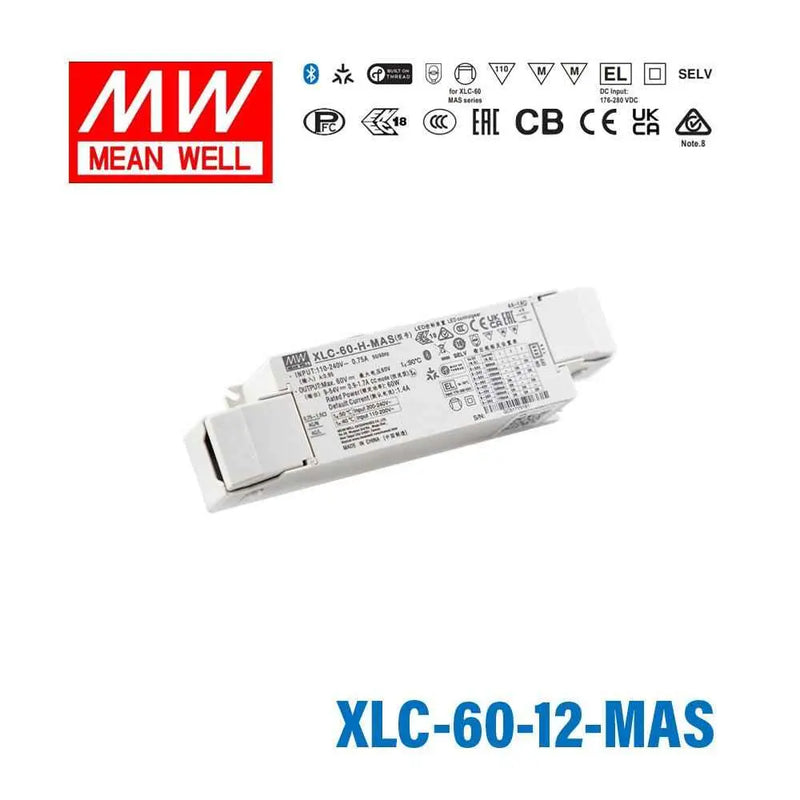

XLC-60-12-MAS
Manufacturer MEAN WELL

XLC-60-12-MAS

Availability: Out of stock
60 W12 V0.00 A100V–305V in

Request a Backorder

Submit your request and we will confirm lead time.

XLC-60-12-MAS
Quantity Prices (CAD)
Quantity
Unit Price (CAD)
1+
$70.00 CAD
10+
$66.50 CAD
20+
$65.10 CAD
50+
$63.70 CAD
100+
$62.30 CAD
200+
$60.90 CAD
All prices are displayed in CAD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V~305V
Output Voltage
12V
Rated Current
0.00A
Power Rating
60W
Waterproof
Non-waterproof
Dimensions & Weight
6.92 x 1.25 x 1.77 in0.85 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features:

  • Constant power mode output with multiple stage selectable by DIP switch (H-type)
  • Constant voltage mode output (12/24/48V)
  • Plastic housing with class II and PFC design
  • Flicker free, complying with CE ErP directive
  • Standby power consumption <0.5W
  • Meet emergency lighting (EL) application
  • Minimum dimming level 0.1% (12/24/48V)
  • Minimum dimming level 0.5% (H-type)
  • Matter over thread, Matter 1.3 specification
  • 5 years warranty

General Specification

AC input voltage range

100-305VAC 155-400VDC

AC inrush current (max.)

COLD START VAC NEMA 15A(twidth=310μs measured at 50% Ipeak) at 230 ; Per 410

Overload protection

105~200% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed.

Over-voltage protection

(14-17V) (26-35V) (52-63V)

Shut down output voltage, re-power on to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase=-25~90 (Please refer to “ vs ” section)

Safety standards

CSA ENEC BS EN EN BS EN EN EL C22.2 No. 250.13-12; / 61347-1, / 61347-2-13( ) appendix J suitable for emergency installations ( input 176-280 ); / 62384 , , 004 approved; DC VDC BS EN EN EAC TP TC GB/T 19510.1, GB/T 19510.213 Design refer to / 61347-1, / 61347-2-13

Dimension (LxWxH)

176*45*32mm (L*W*H)

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
